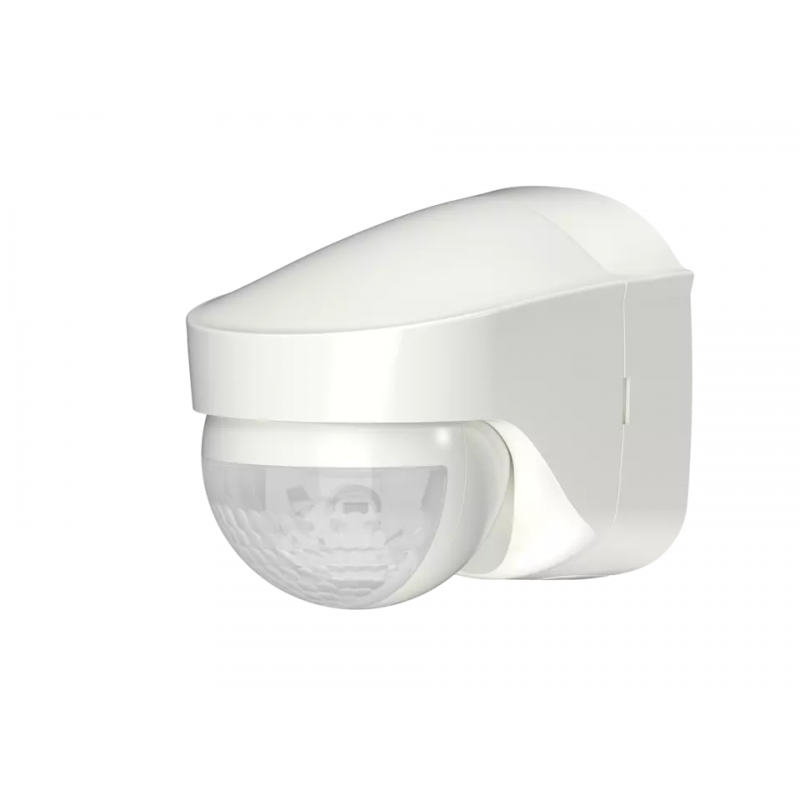

DETECTOR MOVIMENTOS PIRA TO AP (180° 10 m) IP55

DETECTOR MOVIMENTOS PIRA TO AP (180° 10 m) IP55

Function description
Passive infra-red motion detector for wall installation
180° detection angle, 10 m at 2 m mounting height
For outdoor use
Adjustable brightness switching value and switch-off delay
Mixed light measurement
Instant start-up possible via factory preset

Technical data
Operating voltage 230 V AC
Frequency 50 Hz
Stand-by consumption <
Light measurement Mixed light measurement
Number of channels 1
Colour White
Installation type Wall installation, Outdoor
Setting range brightness 1.8 lx - 1000 lx
Detection angle 180°
Switching output Light
Light switch-off delay 5 s - 15 min
Incandescent/halogen lamp load 1000 W
LED lamp 2-8 W 200 W
LED lamp > 8 W 200 W
Lamp types Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Detection range Semicircular, Semicircular
Ambient temperature -20°C ... 40°C
Protection class II
Type of protection IP 55

Detection area
Mounting height (A) Diagonally (t) Head on to (R)
2 m 10 m 3 m
