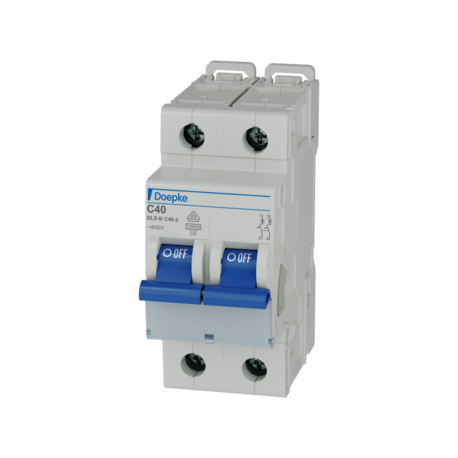

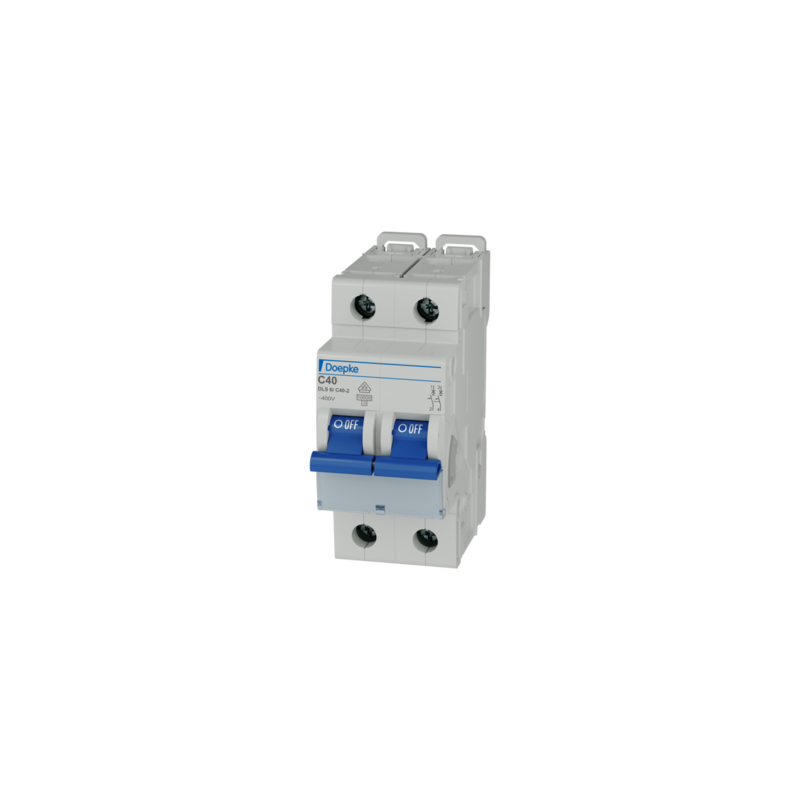

DISJUNTOR DLS 6i C 2POLOS 40A 10kA

DISJUNTOR DLS 6i C 2POLOS 40A 10kA

DESCRIPTION
Circuit-breakers, 2-poles, Characteristic C, 40 A, 10 kA, for industrial facilities

FUNCTION
Miniature circuit-breakers (MCB), commonly referred to as a fuses, switch an electric circuit off in the event of overcurrent or short-circuit and protect the electric lines against damage. The miniature circuit-breaker series DLS 6 has a wide selection of different types for a number of application areas. In addition to switches for residential and purpose-built buildings, it also contains switches for industrial applications. The compact design provides lots of space for the wiring and the large clamping area, as well as the option of using conventional wiring rails for easy processing. The series also has a large, folding label window and a clearly labelled display for the operating status. A number of additional devices, such as undervoltage or operating current trips and auxiliary and fault indicator switches, make universal use of the miniature circuit-breakers possible. The DLS 6i design is especially suitable for use in industrial facilities, for example, due to its high rated switching capacity of 10 kA. The large selection of rated currents and tripping characteristics also allow the use of the miniature circuit-breaker in many applications. Switches with tripping characteristic C are optimised for power circuits with high inrush or peak currents.

PROPERTIES
high rated switching capacity for use in industrial systems, Screw terminals with strain-relief clamps with wide terminal cross-section range for rail and line wiring on both connection sides, Designs with 1 to 4 protected poles, special quick fastening for removal of multiple miniature circuit-breakers from the bottom or top interconnection, large, folding label window for a secure hold and protection of the label, use of conventional wiring rails, ON/OFF switch position indicator on the switch toggle, accessories retro-fittable on the right, labelling software free of charge

INSTALATION
quick fastening to mounting rail, any installation position

APPLICATIONS
suitable for use in power supplies for industrial facilities and purpose-built buildings or buildings for commercial use
