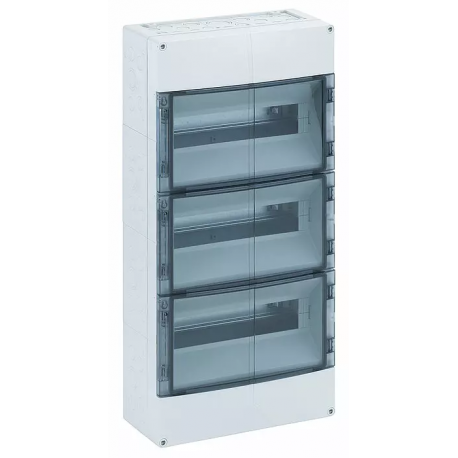

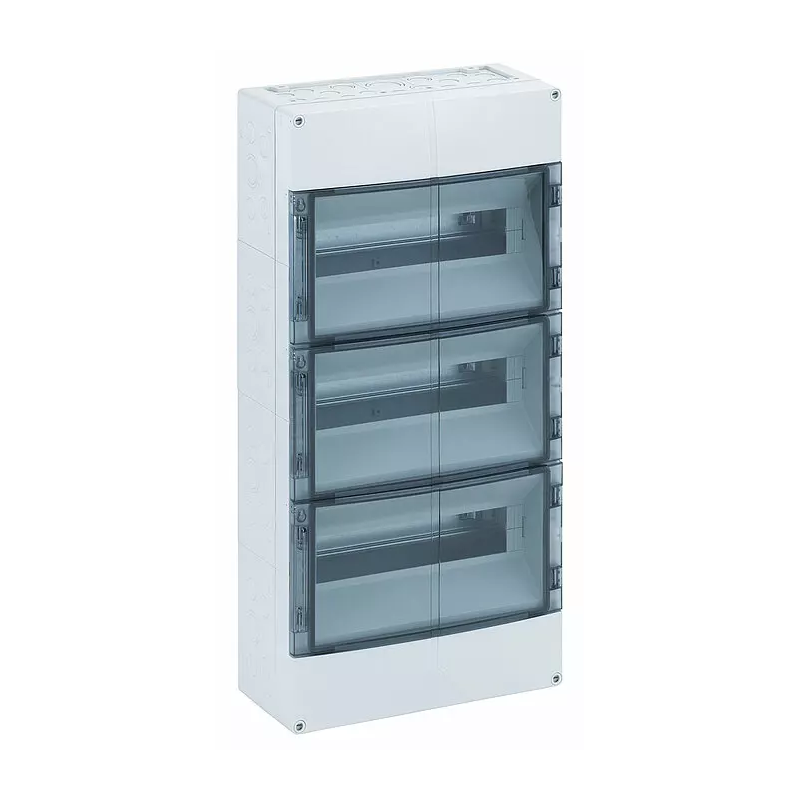

QUADROsaliente AKe 36 36TE 300x600x142mm IP55 IK07

QUADROsaliente AKe 36 36TE 300x600x142mm IP55 IK07

Small-scale distributors, with protection class IP55, 3 Rows, 36 available
modules, Rated operational voltage: 400V AC, Rated insulation voltage:
690V AC, 690V DC, metric knockouts on top and bottom for universal
cable insertions with cable glands, double membrane seals and/or
stepped nipple, with PE/N terminal rail, each with 1 terminal point 25
mm², 4 terminal points 16mm² and 12 terminal points 6 mm²

Characteristics:
Type of protection IP55, 36 Modular units, Impact strength IK07, Protection class II, Rated voltage 400V AC, Halogen free

Accessories supplied:
Stepped nipples: 25x M20, 2x M25, 1x M32, 1x M40, sealing plugs, cover and labelling strips
