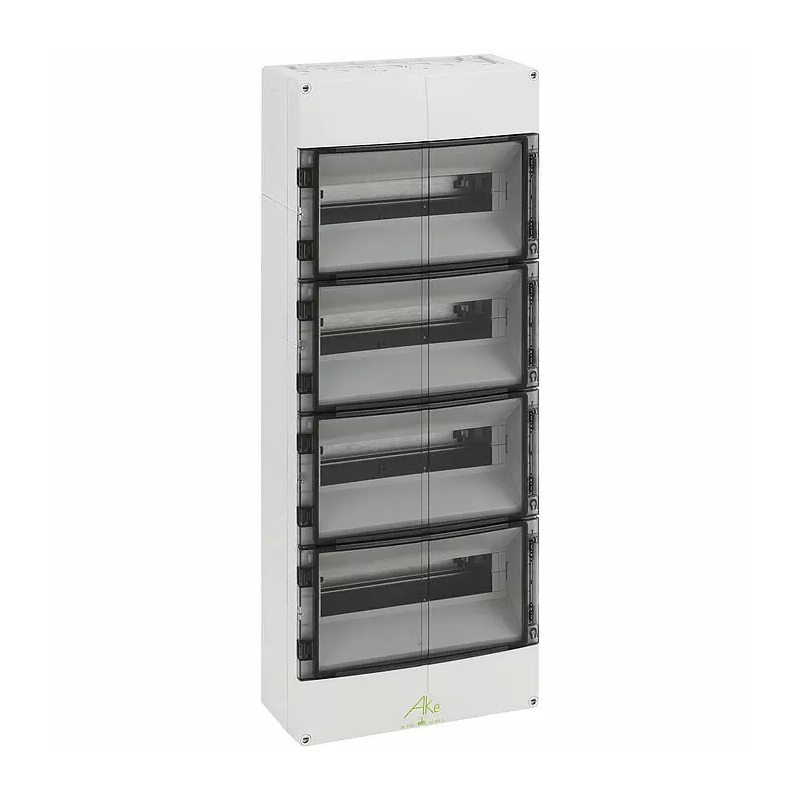

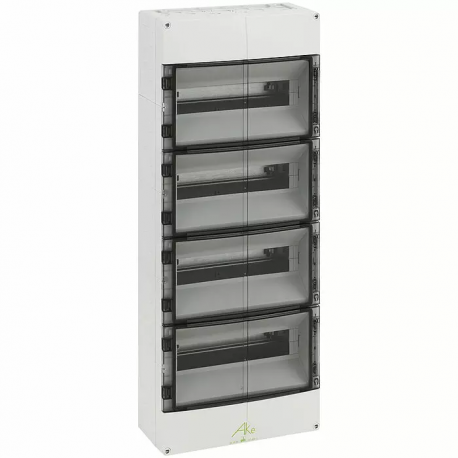

QUADROsaliente AKe 48 48TE 300x750x142mm IP55 IK07

QUADRO saliente AKe 48 48TE 300x750x142mm IP55 IK07

Small-scale distributors, with protection class IP55, 4 Rows, 48 available
modules, Rated operational voltage: 400V AC, Rated insulation voltage:
690V AC, 690V DC, metric knockouts on top and bottom for universal
cable insertions with cable glands, double membrane seals and/or
stepped nipple, with PE/N terminal rail, each with 1 terminal point 25
mm², 6 terminal points 16mm² and 18 terminal points 6 mm²

Characteristics:
Type of protection IP55, 48 Modular units, Impact strength IK07, Protection class II, Rated voltage 400V AC, Halogen free

Accessories supplied:
Stepped nipples: 25x M20, 2x M25, 1x M32, 1x M40, sealing plugs, cover and labelling strips
