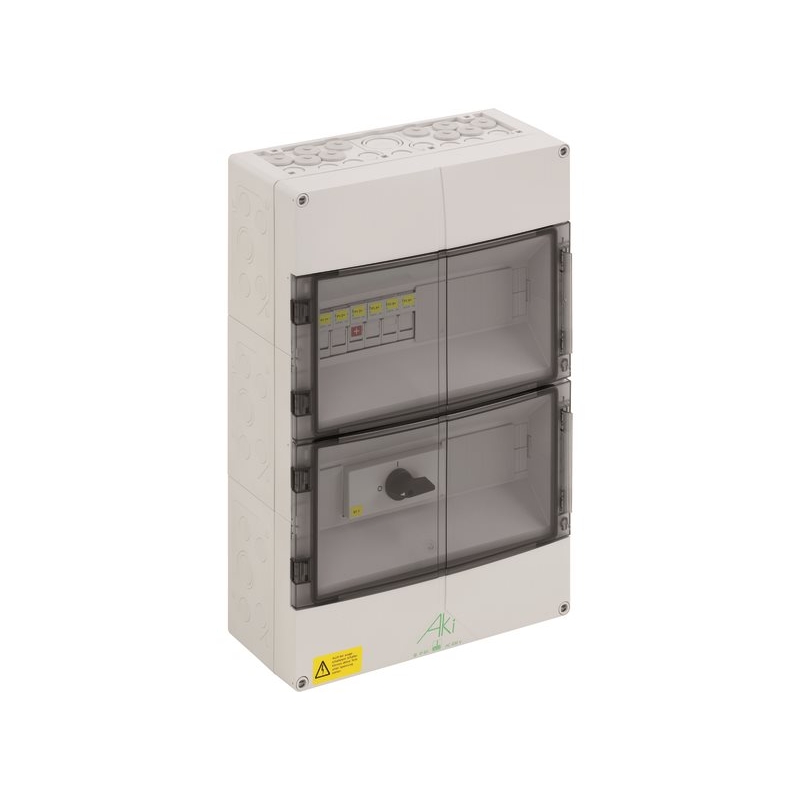

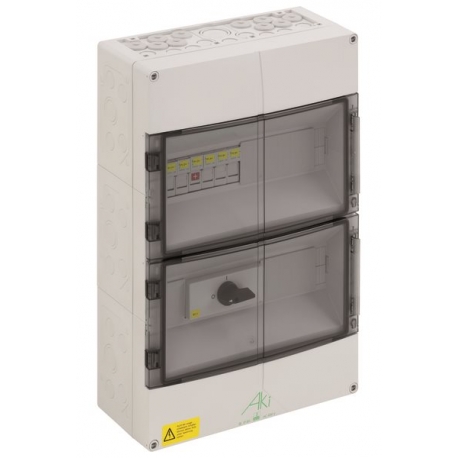

Caixa de fusíveis do gerador GS6 900-40 S

Generator fuse enclosure, with DC load disconnector switch, for up to 8 strings connected in parallel, Max. ISC string: 8.5 A, with insulating seals, Protection rating IP65, protection level IK08, protection class II, halogen-free, IQ - Industrial quality, 300 x 450 x 142, for 6 parallel connected strings, max. cable cross-section 6 mm², Input side, max. connection cross-section 16 mm², output side, with cable glands, included, 12 x M20, Seal range 4 - 13 mm, 2 x M20, sealing range 7 - 13 mm, Dim.: 300 x 450 x 142 mm
