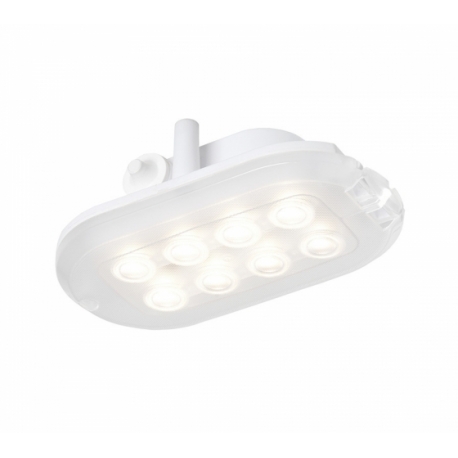

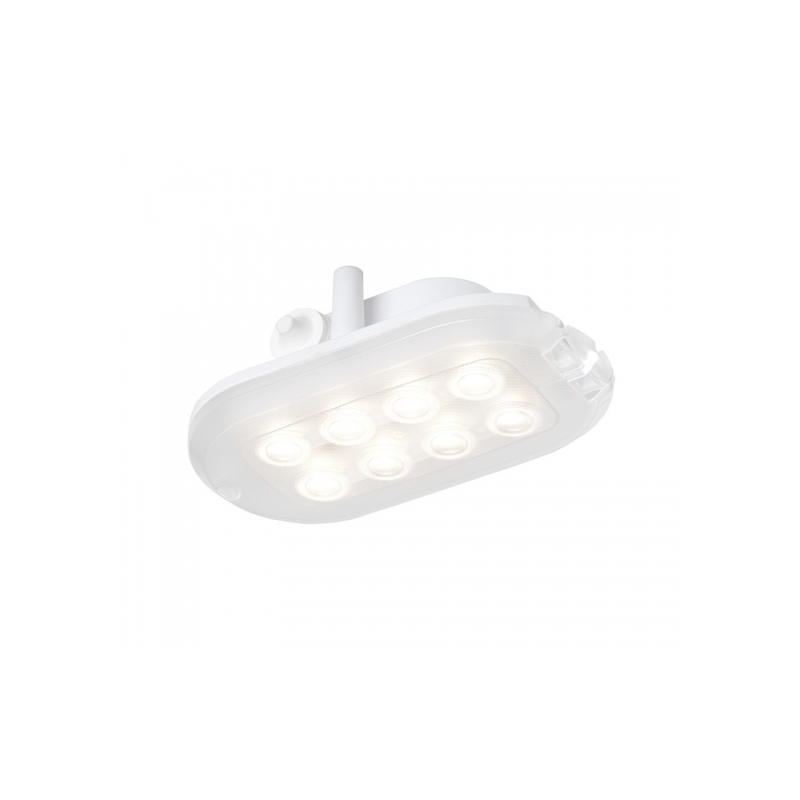

OVAL LED PRO 4W 3000K 360 lm IP44 IK10

OVAL LED PRO 4W 3000K 360 lm IP44 IK10

SPECIFICATION

Surface-mounted, modern technical bulkhead suitable for installing on walls and ceilings. Its design allows surface mounted wiring as well as through wiring. Avilable in 4W version, with 360 lumens light output. Equipped with an opal diffuser made of Makrolon® LED (Bayer) providing excellent dispersion and allowing up to 93% light transmission. The unique, patented design, includes direct installation of LED panels on the diffuser. The diffuser is connected to the base on a movable hinge, which provides easy access to the terminal block and mounting points of the lamp. The fitting is highly impact-resistant IK10 and has ingress protection class IP44

APPLICATION

Dedicated for both indoor (rooms with high humidity, passageways, staircases and basements) and outdoor use (industrial façade lighting, car parks). Easy access to mounting points. Through-wiring system. Gaskets. Easy access to terminal lock. Easy access to the mounting holes. Installation of LED GO! panels directly on the diffuser.

CHARACTERISTIC

- Supply voltage: 230V
- Frequency: 50Hz
- Ingress protection IP: IP44
- Impact resistance IK: IK10
- Rated power: 4W
- Energy efficiency class: A +
- Electrical protection class: II
- Material of the body: PP
- Colour temperature: 3000K, 4000K
- Luminous flux* : max. 360lm
- Material of the diffuser: Makrolon® LED
- Type of the diffuser: Opal
