RADIO MICROMODULE ON/OFF ou CLOSE/STOP/OPEN (2x 2A

RADIO MICROMODULE ON/OFF ou CLOSE/STOP/OPEN (2x 2A

Description

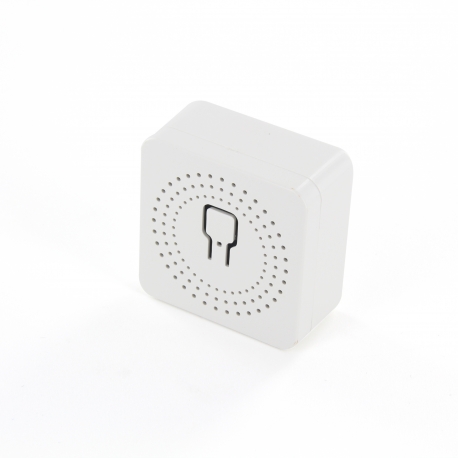

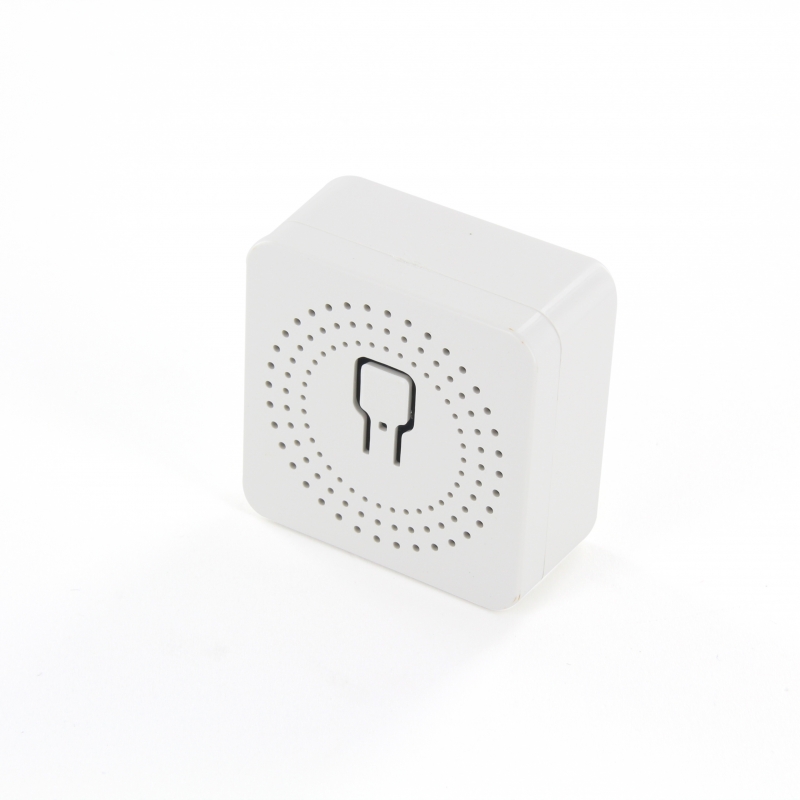

Radio micromodule for shutter or blind with an extra function that allows you to connect 2x2A On/Off devices. It can be placed in flush-mount wall boxes, junction boxes, suspended ceilings or near the shutter power supply. Allows On/Off and Open/Stop/Close control. Suitable for all types of applications: shutters, blinds, lights, motors 230V, ...

Functions
- On/Off
- Open/Stop/Close
- Timer 60min - 120min (On/Off)
- Gradual switching On/Off
- Keeps track of the last light level set
- 2 powered output relay

- Specifications
- Power supply: 230VAC 50/60Hz
- Maximum load: 2x2A
- 4 pre-wired cables
- 2 powered output relay
-Transmition frequency: 868.3MHz
- Outdoor range: 100m
- Bidirectional
- Replica of the signal (repeater)
-Operating temperature range: -10°C to +45°C
-Protection degree: IP20
-Dimensions: 48x46x26mm
