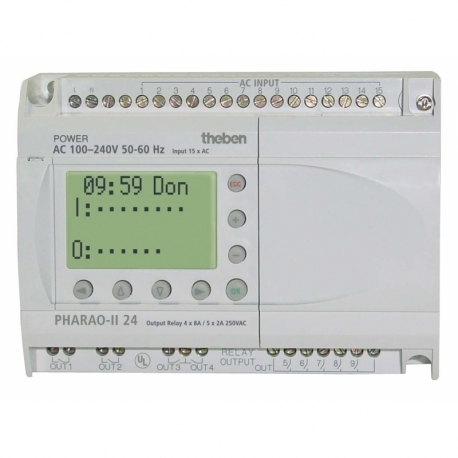

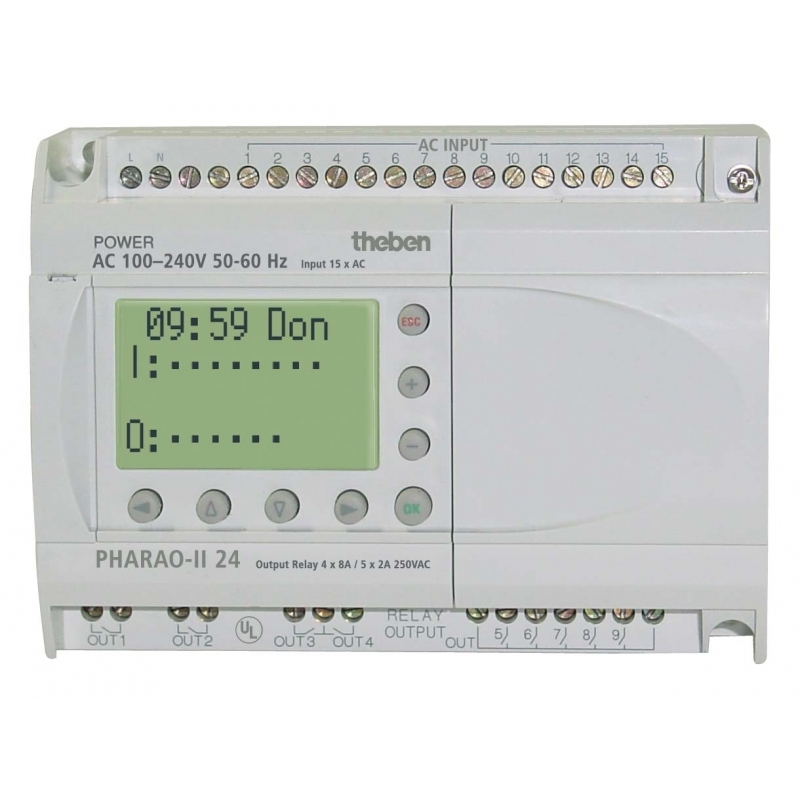

PLC PHARAO-II 24 (15E/9S) 240V AC

Name: PHARAO-II 24 (AC)
Description: Programmable logic controllers/PLCs. Programmable logic controller, 15 inputs, 9 relay outputs

Features:
    • Programmable control device for domestic technique and industry
    • Compact serial installation housing
    • 34 pre-programmed function blocks which can each be used up to 200 times
    • Function blocks with special control functions (gain, hysteresis etc.)
    • Direct programming even of complex Boolean functions in on function module.
    • Programming, editing and changing directly at the device via 8 keys without interface cable
    • Graphical LCD with operator prompting in clear text
    • Switching status indication of inputs and outputs
    • Display of process variables (MMI function) on the display
    • Allocation of the programmed functions at the front keys
    • Internal EEPROM memory for max. 200 function blocks (5,000 bytes)
    • Optional pluggable EEPROM for program transfer or dual programming of internal or plugged EEPROM
    • 3 level password protection
    • Graphical programming software for Windows 95/98/NT/2000/ME/XP with comprehensive online help documentation
    • Programming of the function blocks via ”drag and drop“
    • Online and offline simulation at the screen
    • Remote action/remote monitoring possible via modem or GSM modem
Technical Info:
    • Operating voltage : 100-240 V~
    • Inputs: 15 (digitally)
    • Outputs: 9 (4 x 8A/250V~; 5 x 2A/250V~)
    • ambient temperature: -25 °C ... + 55 °C
    • degree of protection: IP 20
    • Power reserve: 20 d
Design:
    • size: 7 TE - 45 x 122 x 60mm
    • Application type: DIN
    • protection against accidental contact according to the rules for the prevention of accidents BGV A3
    • Snap-on fixing for 35 mm top-hat rail (DIN EN 50 022)
Accessories:
    • SOFTWARE PHARAO P/WINDOWS 95/98/2000/NT: 001.073.100
    • CABO LIGAÇÃO PC / PHARAO I/II 9070252 : 001.073.101
    • CARTÃO MEMÓRIA ADICIONAL (EEPROM) : 001.073.102
    • KIT DE INSTALACAO SUPERFICIE : 001.073.103
    • CABO LIGAÇÃO PHARAO II GSM 14AC : 001.073.120
    • MÓDULO EXPANSÃO PHARAO-II (4E D/A) 24DC 5759101 : 001.073.130
    • MÓDULO EXPANSÃO PHARAÓ-II 4 AR 220V(AC) 5759102 : 001.073.132
    • CELULA 131 DDC - 1319700 : 001.073.140
    • FONTE DE ALIMENTAÇÃO 24V DC 9079330 : 001.073.150
