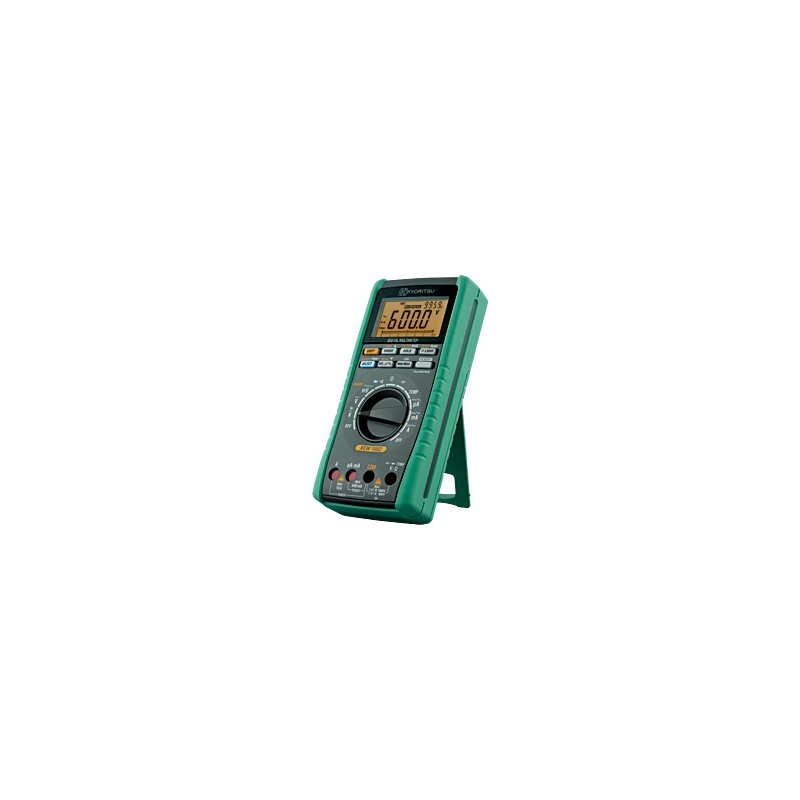

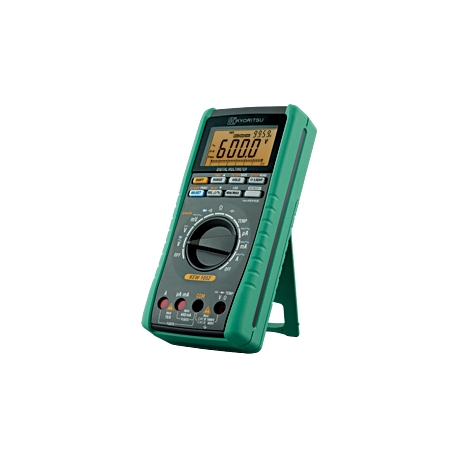

DIGITAL MULTIMETER TRMS CA/CC CAT.IV

Name: DIGITAL MULTIMETER MOD 1051



High Accuracy, High Performance and Reliable Measurements
• 0.09% basic DC accuracy
• Large display with 6,000 counts
• True-RMS Measurements
• True-RMS or MEAN value detection mode can be selected *
• Low-pass filter for motor drive measurements
• User calibration function

Safety design for industrial use
- Complies with IEC 61010-1 CAT IV 600V,
CAT III 1000V
Terminal shutter to prevent incorrect test leads' insertion in current terminals
- Very wide operating temperature range from
-10 to 55ºC

Reliable support for data management *
- Large data internal memory *
KEW 1052: 1,600 data (logging), 100 data (manual)
- Download data and Live Monitoring on a PC via the USB interface
(Option for USB Communication set) *

* Only for KEW 1052
* MAX 32,767 data can be transferred
_______________________________

KEW 1051 KEW 1052 RMS detection mode AVERAGE / RMS (switch) V DC 600.0mV / 6000 / 60.00 / 600.0 / 1000V
(Input impedance: 10MO [600 mV / 60/600 / 1000V], 11MO [6V])
| ± 0.09% reading ± 2dgt (basic accuracy) V AC [RMS] 600.0mV / 6.000 / 60.00 / 600.0 / 1000V
(Input impedance: 10MO <200pF [600 mV], 11MO <50pF [6V]
10MO <50pF [60/600 / 1000V])
| ± 0.5% reading ± 5 dgt (Basic accuracy) DC 600.0 / 6000µA / 60.00 / 440.0mA / 6000 / 10.00A
| ± 0.2% reading ± 2dgt (basic accuracy) AC The [RMS] 600.0 / 6000µA / 60.00 / 440.0mA / 6000 / 10.00A
| ± 0.75% reading ± 5 dgt (Basic accuracy) O 600.0O / 6000 / 60.00 / 600.0kO / 6000 / 60.00MO
| ± 0.4% reading ± 1dgt (basic accuracy) Continuity buzzer 600.0O (The bell calls lower resistance to 50 ± 30O) 2.000V Diode test | ± 1% reading ± 2dgt
Open curcuit voltage: <3.5V (0.5mA current measurement Approx.) Capacitance 10.00 / 100.0nF / 1000 / 10.00 / 100.0 / 1000µF
| ± 2% reading ± 5dgt (basic accuracy) Frequency 10.00 to 99.99 / 90.0 - 999.9Hz / 0.900 to 9.999 / 9.00 - 99.99kHz
| ± 0.02% reading ± 1dgt (basic accuracy) Temperature -50 - 600 ° C | Reading ± 2% ± 2 ° C (using K-type temperature probe) Other Functions of Data Retention (D / H), Auto Hold (A / H), Range Hold (R / H),
Maximum (MAX) *, minimum value (MIN) *, the average value (AVG) * Zero Adjustment (Capacitor, Resistance), save memory *
LCD backlight withstand voltage 6,880V / 5 sec. Applicable
IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution Degree 2,
IEC 61010-031, IEC 61326-1 (EMC) Power supply R6 (1.5V) × 4 (auto power off: approx 20 minutes.) Dimensions 192 (L) x 90 (W) x 49 (D) mm Weight Approx. 560g (including batteries) Accessories 7220A (Test leads), R 6 × 4, manual,
8926 (Fuse [440mA / 1000V]) × 1 (included)
8927 (Fuse [10A / 1000V]) × 1 (included)
* Only for KEW 1052 Option Description clip test Model Specification Crocodile take 7234 CAT IV 600V, CAT III 1000V AC / DC Sensor clamp 8115 AC 130A / DC USB 180A Communication September 8241 USB adapter + USB cable + complete set Printer DMM Software DMM 8249 8243 + 8246 + 8248 Printer Communication September 8243 Printer Adapter + cable RS232 Printer 8246 Printer + Thermal paper (1 roll) AC adapter to the printer [EU] 8248 AC230V ± 10% thermal paper for printer 8247 probes 10 temperature roller 8405 Max. 500 ° C
(Surface type, Point Material: Ceramics) 8406 Max 500ºC (type of surface) 8407 Max 700 ° C (Liquid, semi-solid) 8408 Max 600 ° C (air, gas) Carrying Case 9154 for the main unit with testi connections... and communication cable
