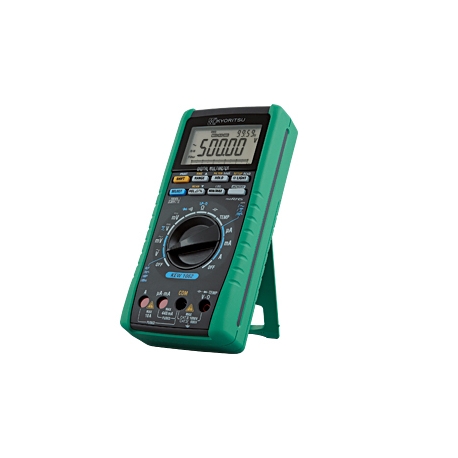

DIGITAL MULTIMETER TRMS CA/CC CAT.IV

Name: DIGITAL MULTIMETER MOD 1061

High Accuracy, High Performance and Reliable Measurements
- 0.02% basic DC accuracy
- Large display with 50,000 counts
- Dual display for double indication for AC and DC, V and Hz, etc.
- True-RMS Measurements AC and AC+DC
- Wide AC Frequency bandwidth from 10Hz to 100kHz *
- True-RMS or MEAN value detection mode can be selected *
- Fast Peak Hold response time of 250µs
- Low-pass filter for motor drive measurements *
- Low Power O for resistance measurements on sensible electronic circuits by a low and safe test current *
-User calibration function
* Only for KEW 1062

Safety design for industrial use
- Complies with IEC 61010-1 CAT III 1000V, CAT IV 600V
- Terminal shutter to prevent incorrect test leads' insertion in current terminals
- Very wide operating temperature range from -20 to 55ºC

Reliable support for data management
- Large data internal memory
KEW 1062: 10,000 data (logging), 100 data (manual)
KEW 1061: 1,000 data (logging), 100 data (manual)
- Download data and Live Monitoring on a PC via the USB interface
(Option for USB Communication set)

* MAX 32,767 data can be transferred
