DIGITAL MULTIMETER CA/CC 600V

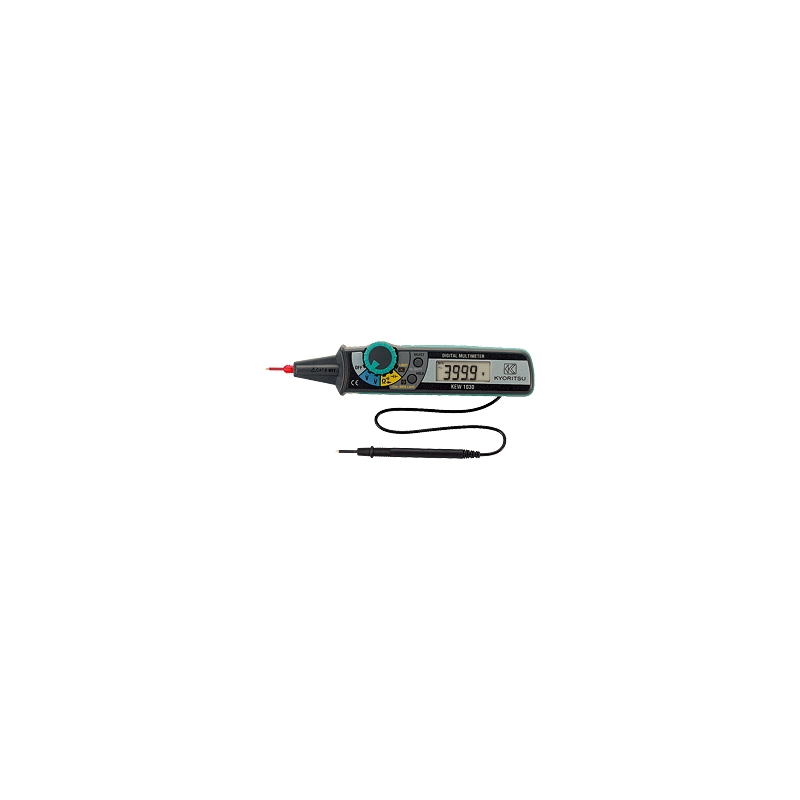

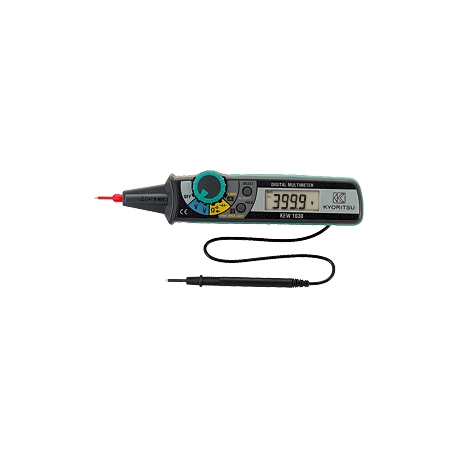

Name: DIGITAL MULTIMETER MOD 1030
Description: Compact in Size, Light in Weight and Simple in Use

Features:

- Compact in Size, Light in Weight and Simple in Use.
- Double moulding provides comfortable and good feeling in hand.
- Penlight illuminates brightly the point to be measured, even in dark place.
- Backlight LCD is highly visible, even in darkness.
- Unique wrapping mechanism for test lead in the rear side compartment.
- Unique protection mechanism for the test prod for safety.
- All ranges including Ohm range are protected against overload voltage of 600V.
________________________________________________________________


* Length of test lead is adjustable in 3 steps, ie, 60cm, 40cm and 20cm.

AC V 4/40/400/600V (4 Range auto)
|±1.3%rdg|±5dgt (4/40V) (50/60Hz)
|±1.6%rdg|±5dgt (400/600V) (50/60Hz)
DC V 400m/4/40/400/600V (5 Range auto)
|±0.8%rdg|±5dgt(400mV - 400V)
|±1.0%rdg|±5dgt(600V)
O 400/4k/40k/400k/4M/40MO (6 Range auto)
|±1.0%rdg|±5dgt (400O - 4MO)
|±2.5%rdg|±5dgt (40MO)
Diode check Test voltage approx. 0.3 - 1.5V
Continuity check Buzzer sounds when resistance is 120O or less.
Capacitance 50n/500n/5µ/50µ/100µF (5 Range auto)
|±3.5%rdg|±10dgt (50nF)
|±3.5%rdg|±5dgt (500n - 50µF)
|±4.5%rdg|±5dgt (100µF)
Frequency 5/50/500/5k/50k/200kHz
|±0.1%rdg|±5dgt (Measurable input: 1.5Vrms or more)
Duty 0.1 - 99.9%
|±2.5%rdg|±5dgt (Pulse width / Pulse cycle)
Data hold The measured value can be hold by pressing Data hold button
Battery voltage warning When the battery voltage drops to 2.4V|±0.2V or less
Auto power-off Built-in
Applicable standards IEC 61010-1: 2001 CAT III 600V
IEC 61010-031
IEC 61326-1
Power source Button type battery LR44 (SR44)1.5V × 2
Dimensions 190(L) × 39(W) × 31(D)mm
Weight Approx. 100g (including batteries)
Accessories Carrying case, LR44 (1.5V) × 2, Instruction manual
