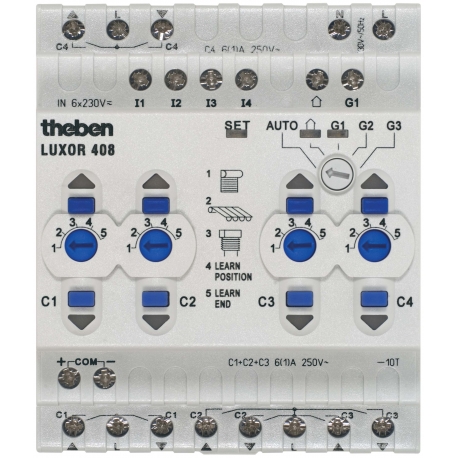

MODULO ESTORES 4 CANAIS LUXOR 408 S

Name: LUXOR 408
Description: LUXOR roller shutter control. Living comfort control device, roller shutter basic module, 4 drives

Features:
    • Introduction: Roller shutter basic module to control a maximum of four roller shutters, Venetian blinds or sun blinds. The module can be controlled by all standard roller shutter pushbuttons. Three groups are available for individual channel programming and the function Central UP/DOWN. The module can be extended with channel extensions as well as with a time and a sensor module with connectable weather station.
    • Selection switch for roller shutters, sun blinds and Venetian blinds for each channel
    • Separate control of 4 roller shutters UP/DOWN/STOP
    • Central UP/DOWN of all roller shutters
    • Group function for one roller shutter group
    • Intermediate position and turning for shade and ventilation can be stored
Technical Info:
    • Operating voltage : 230 V~, +10 %/-15%
    • frequency : 50 Hz
    • channels: 4 x 6 A
    • degree of protection: IP 20
    • ambient temperature: -10 °C ... +50°C
    • power consumption : ca. 4 VA
    • Cable length: 100 m (COM and inputs)
Design:
    • size: 4 TE - 45 x 72 x 60mm
    • Application type: DIN
