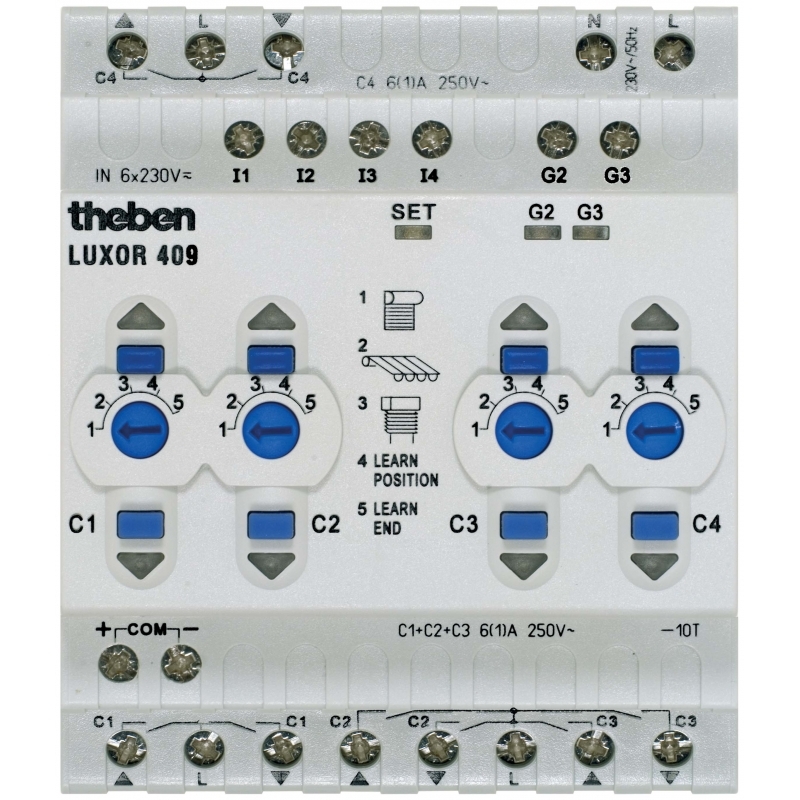

LUXOR 409

Name: LUXOR 409
Description: LUXOR roller shutter control. Living comfort control device, roller shutter basic module, 4 drives

Features:
    • Introduction: Living comfort device (roller shutter extension device) for din rail program
    • Selection switch for roller shutters, sun blinds and Venetian blinds for each channel
    • Separate control of 4 roller shutters UP/DOWN/STOP
    • Central UP/DOWN of all roller shutters via LUXOR 408
    • Group function for one roller shutter group
    • Intermediate position and turning for shade and ventilation can be stored
Technical Info:
    • Operating voltage : 230 V~, +10 %/-15%
    • frequency : 50 Hz
    • channels: 4 x 6 A
    • degree of protection: IP 20
    • ambient temperature: -10 °C ... +50°C
    • power consumption : ca. 4 VA
    • Cable length: 100 m (COM and inputs)
Design:
    • size: 4 TE - 45 x 72 x 60mm
    • Application type: DIN
