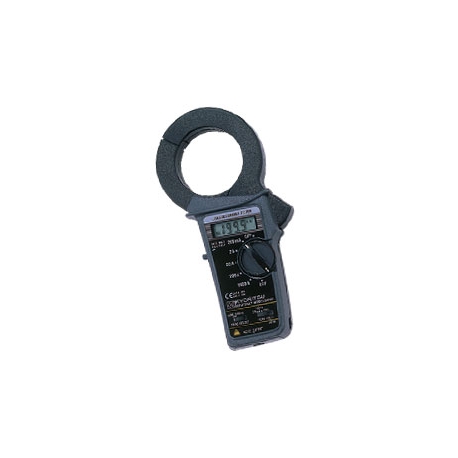

LEAKAGE CLAMP METER CA 1000A 68 MM

Name: LEAKAGE CLAMP METER 2413F

Functions

- Extra wide transformer jaws are best suited for clamping on all three or four wires (3phases) together for leakage current measurement.
- Frequency filter switch to eliminate the effect of harmonics.
- Output terminal.
________________________________________________________________

AC A
(50/60Hz) 200mA/2/20/200A/1000A
|±1.5%rdg±2dgt (200mA/2/20A)
|±2%rdg±2dgt (200A 0 - 500A)
|±5.5%rdg (501 - 1000A)
AC A
(WIDE) 200mA/2/20/200/1000A
|±1%rdg±2dgt [50/60Hz],
|±3%rdg±2dgt [40Hz - 1kHz] (200mA/2/20A)
|±1.5%rdg±2dgt [50/60Hz],
|±3.5%rdg±2dgt [40Hz - 1kHz] (200A/0 - 500A)
|±5%rdg [50/60Hz],
|±10%rdg [40Hz - 1kHz] (501 - 1000A)
Conductor Size Ø68mm max.
Effect of External
Stray Magnetic Field
Ø15mm 100A 10mA AC max.
Frequency Response 40Hz - 1kHz
Output
Waveform : AC200mV against the maximum value of each range (1000A range is 100mV)
Recorder : DC200mV against the maximum value of each range (1000A range is 100mV)

Withstand Voltage 3700V AC for 1 minute
Applicable Standard IEC 61010-1 CAT III 300V
IEC 61010-2-032
Power Source 6F22 (9V) × 1 *Continuous measuring time: Approx. 60 hours
Dimensions 250(L) × 130(W) × 50(D)mm
Weight 570g approx.
Accessories 9094 (Carrying Case)
6F22 × 1
Instruction Manual
Optional 7073 (2WAY Output Cord)
