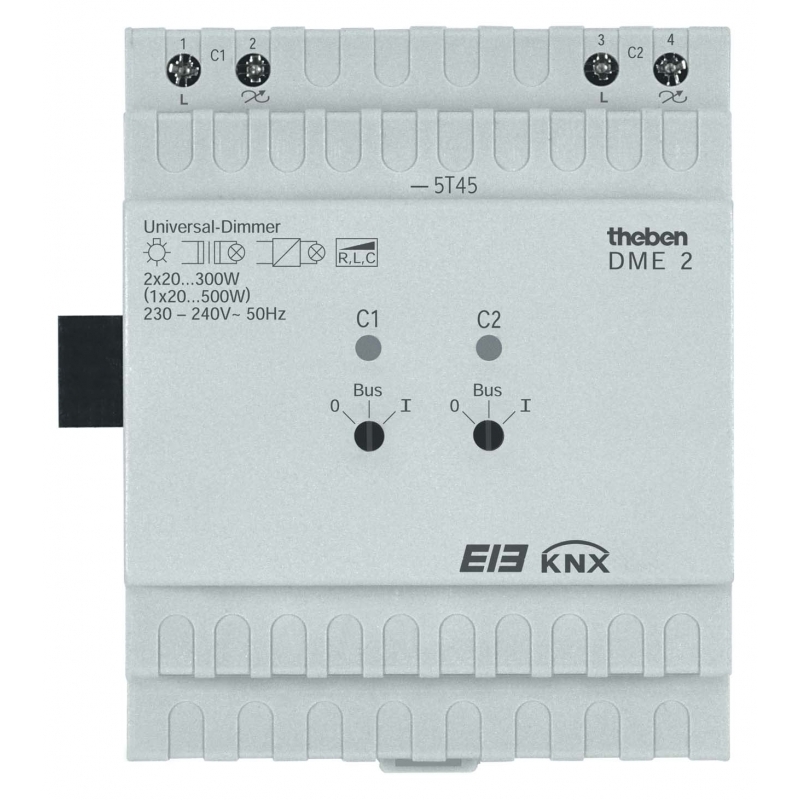

DIMMING ACTUATOR DME 2 T KNX

Name: DME 2 EIB/KNX
Description: EIB/KNX universal dimming actuator twofold, extension device

Features:
    • 2-fold dimming basic module 2 x 300 W/VA or 1 x 500 W/VA
    • Dimming power per basic and extension module: 2 x 300 W/VA or 1 x 500 W/VA; combined, there are the following possibilities: 6 x 300 W/VA or 4 x 300 W/VA + 1 x 500 W/VA or 2 x 300 W/VA + 2 x 500 W/VA or 3 x 500 W/VA
    • When using the “Dimming Boosters“ DMB 2, the dimming power per device can be doubled to: 2 x 600 W/VA or 1 x 1000 W/VA
    • Central objects with and without priority
    • Automatic load detection
    • Diagnosis and feedback objects
    • Behaviour in case of bus failure adjustable
    • Behaviour in case of bus and power recovery adjustable. Application acc. to VDE 108 is thus ensured.
    • Hand switch with ON/OFF/BUS, switching also without bus voltage
    • Dimming modules can be arbitrarily combined with switching modules
Technical Info:
    • Operating voltage : 230 V~, ±10 %
    • Frequency : 50 Hz
    • degree of protection: IP 20
    • Power consumption : <0,5 W
    • Bus current consumption : <10 mA
    • Minimum load : 10 W / VA
    • channels: 2
    • Max. load symmetrical : 2 x 300 W/VA
    • Max. load asymmetrical : 1 x 500 W/VA
Design:
    • size: 4 TE - 45 x 72 x 60mm
    • Application type: DIN
