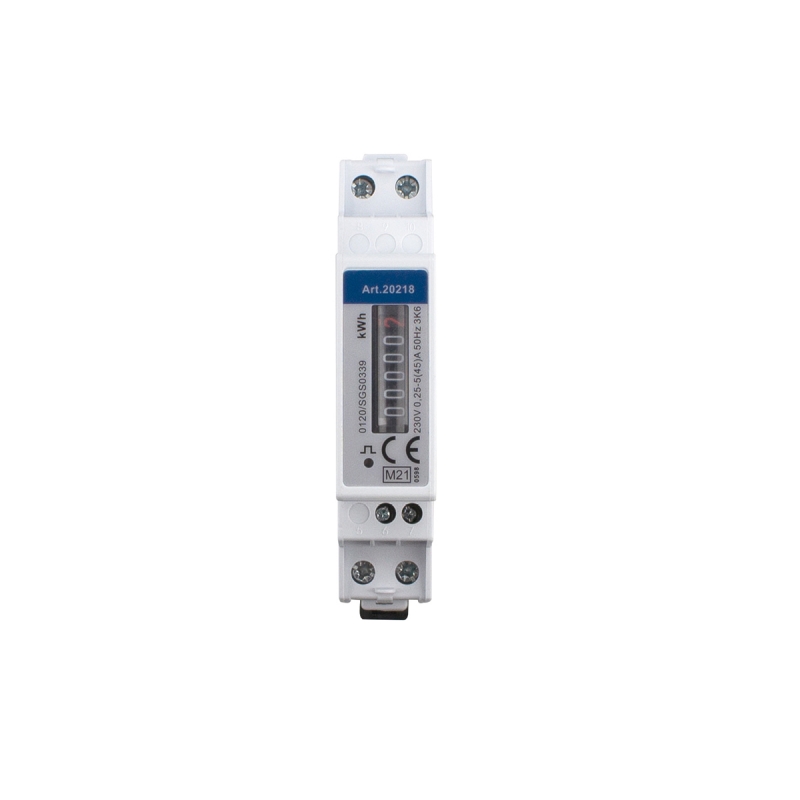

CONTADOR ENERGIA MID 1TE ANALOG 0.25-5(45)A IP44

MID energy counter 1TE ANALOG 0.25-5(45)A IP44

- Calibration-compliant electricity metering for the settlement of insurance claims
- Suitable also for construction sites and farms
- Top-hat rail mounting for easy self-assembly
- tested according to DIN EN 50525-2, IEC 60309, IEC EN 50470-1
- MID-compliant and suitable for billing purposes
- Accuracy class B
- Display analogue: 5+1-digit, readable at any time
- Display for max. 99,999.9 kWh
- Roller counter cannot be reset to 0
- Current 0.25-5 A (max. 45 A)
- Operating temperature from -30 °C to +50 °C
- SDM 120 A, 230 V, 50 Hz
- S0: 1000 imp/kWh
- Dimensions HxWxD: 119x17,5x62 mm

Tested according to
DIN EN 50525-2
DIN VDE 0620-2-1, IEC 60309
IEC EN 50470-1
MID calibrated
