DETECTOR PRESENÇA theRonda S360-101 FLAT DE WH

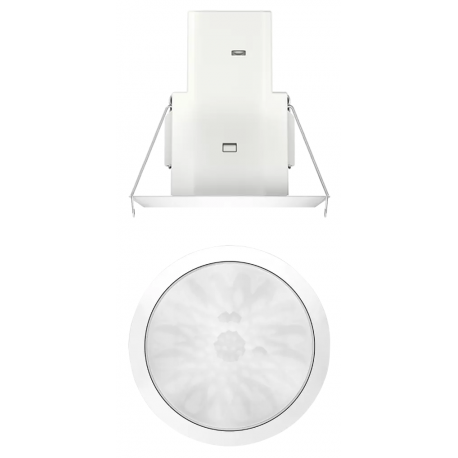

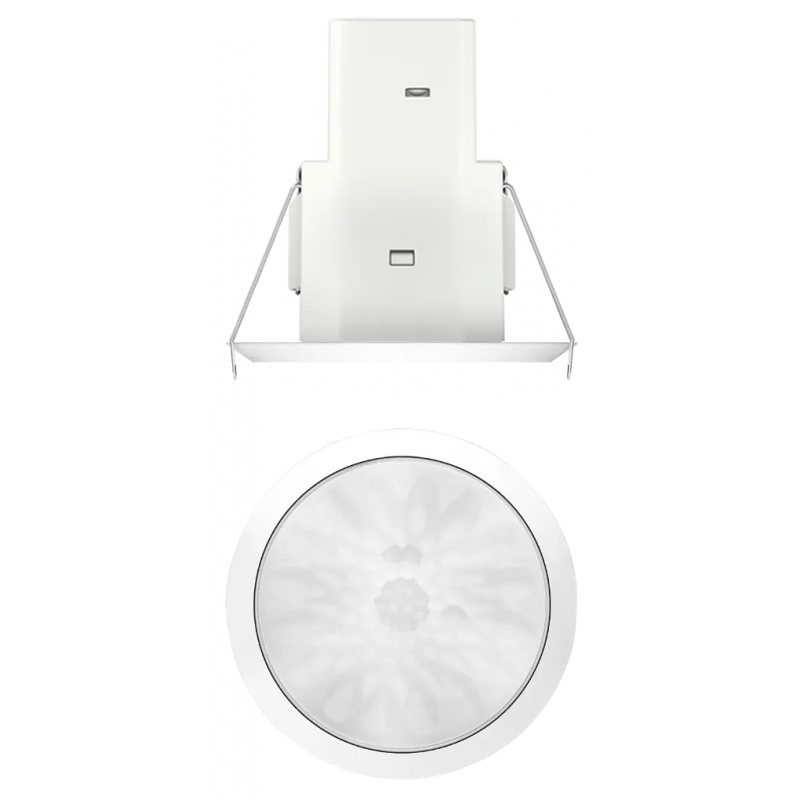

Presence detector theRonda S360-101 FLAT DE WH

Function description
Passive infra-red presence detector for ceiling installation
Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 3 m
1 channel light (Relay, 230 V) and 1 channel presence (Relay, floating for HVAC control)
Automatic motion and brightness-dependent control for lighting and HVAC
Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
Operation as fully automatic device
Brightness switching value configurable, teach-in function
Pulse function for staircase light time switch
Channel H, presence: relay, floating e.g. for HVAC control
Time delay configurable
Detection sensitivity configurable
Test mode for checking function and detection area
Ready for immediate use due to factory presetting (Brightness switching value 300 lux, Time delay 10 min.)
One of these optional remote controls is required for changing the values and attitudes:
Management remote control SendoPro
Installation remote control theSenda P
Optional user remote control: theSenda S
