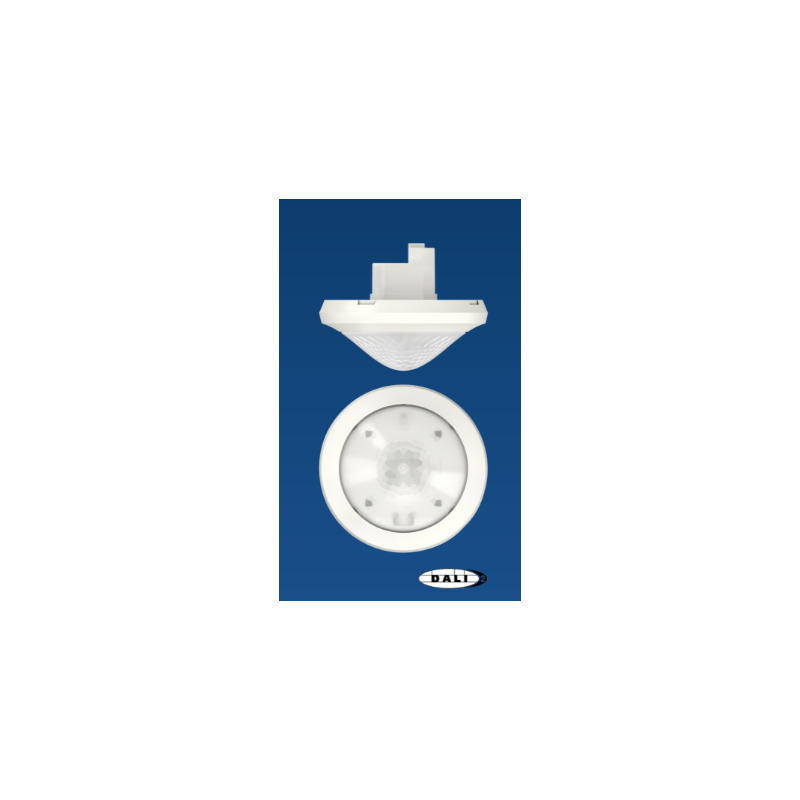

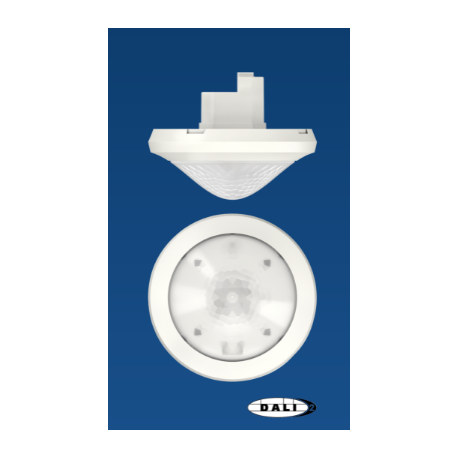

DETECTOR PRESENÇA theRonda P360-110 DALI UP BR

Passive infrared presence detector for ceiling mounting
Round detection area 360°, up to Ø 24 m (452 m2)
Automatic presence- and brightness-dependent control for lighting and HVAC
Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
Channel A, light: relay, 230V
Choice of fully or semi-automatic operation
Adjustable brightness switching value, teach-in function
Reduction of switch-off delay time in the event of short presence (brief-presence)
Connection option for sensors or switches for manual switching with automatic recognition of sensor/switch
Pulse function for staircase light time switch
Channel H, presence: relay, floating
e.g. for HVAC control
Switch-on delay and switch-off delay configurable
Sensitivity adjustable
Detection area can be limited using cover clip
Ready for immediate use due to factory preset
Test mode for checking function and detection area
Extension of detection area via Master/Slave or Master/Master switching, a maximum of 10 detectors can be switched in parallel with each other
Ceiling installation in flush-mounted socket
Ceiling installation also possible with surface-mounted frame
User remote control theSenda S, management remote control SendoPro (optional)
