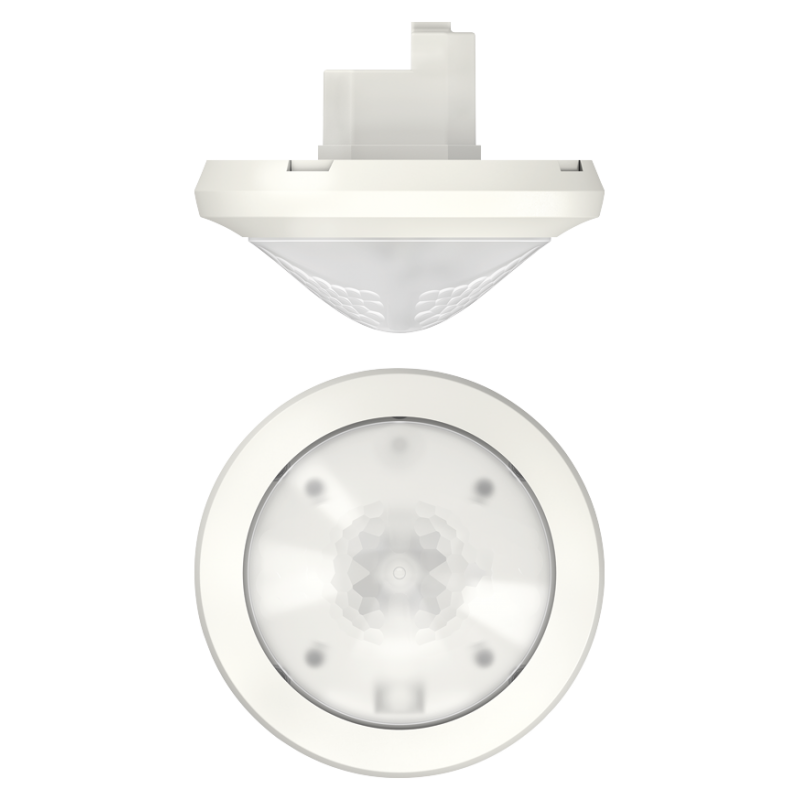

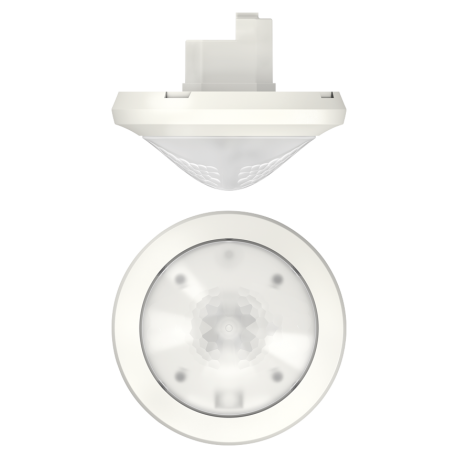

thePassa PRESENCE DETECTOR P360-101 UP WH (T30x5m)

thePassa PRESENCE DETECTOR P360-101 UP WH (T30x5m)

- Passive infrared presence detector for ceiling mounting
- Square detection area for corridors and storage areas
- Detection area with 2 individually connectable and disconnectable detection zones, each 15 x 5 m (total 30 x 5 m)
- Automatic presence- and brightness-dependent control for lighting and HVAC
- Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
- Channel A, light: relay, 230V
- Choice of fully or semi-automatic operation
- Adjustable brightness switching value, teach-in function
- Reduction of switch-off delay time in the event of short presence (briefpresence)
- Connection option for sensors or switches for manual switching with automatic recognition of sensor/switch
- Pulse function for staircase light time switch
- Channel H, presence: relay, floating
- e.g. for HVAC control
- Switch-on delay and switch-off delay configurable
- Sensitivity adjustable
- Detection area can be limited using cover clip
- Ready for immediate use due to factory preset
- Test mode for checking function and detection area
- Extension of detection area via Master/Slave or Master/Master switching, a maximum of 10 detectors can be switched in parallel with each other
- Ceiling installation in flush-mounted socket
- Ceiling installation also possible with surface-mounted frame
- User remote control theSenda S, management remote control SendoPro (optional)


Technical data
Operating voltage 110 - 230 V AC
Frequency 50 - 60 Hz
Installation height 2 - 6 m
Minimum height > 1,7 m
Installation type Ceiling installation
Colour White
Switching output Light | Presence
Power consumption ca. 0,1 W
Light measurement Mixed light measurement
Setting range brightness 30 - 3000 lx
Lamps Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Incandescent/halogen lamp load 2300 W
Compact and flourescent lamps 1150 VA (cos f = 0,5)
Inrush current max. 800 A / 200 µs
LED lamp < 2 W 60 W
LED lamp 2-8 W 180 W
LED lamp > 8 W 200 W
Switch-on delay presence 0 s - 10 min / Room surveillance
Presence switch-off delay 10 s - 120 min
Switching capacity presence 50 W/50 VA
Type of connection Screw terminals
Max. cable cross section max. 2 x 2,5 mm²
Size of concealed housing Ø 55 mm (NIS, PMI)
Detection range 150 m² (30,0 x 5 m)
Ambient temperature -15 °C … +50 °C
Type of protection IP 54 (when fitted)
