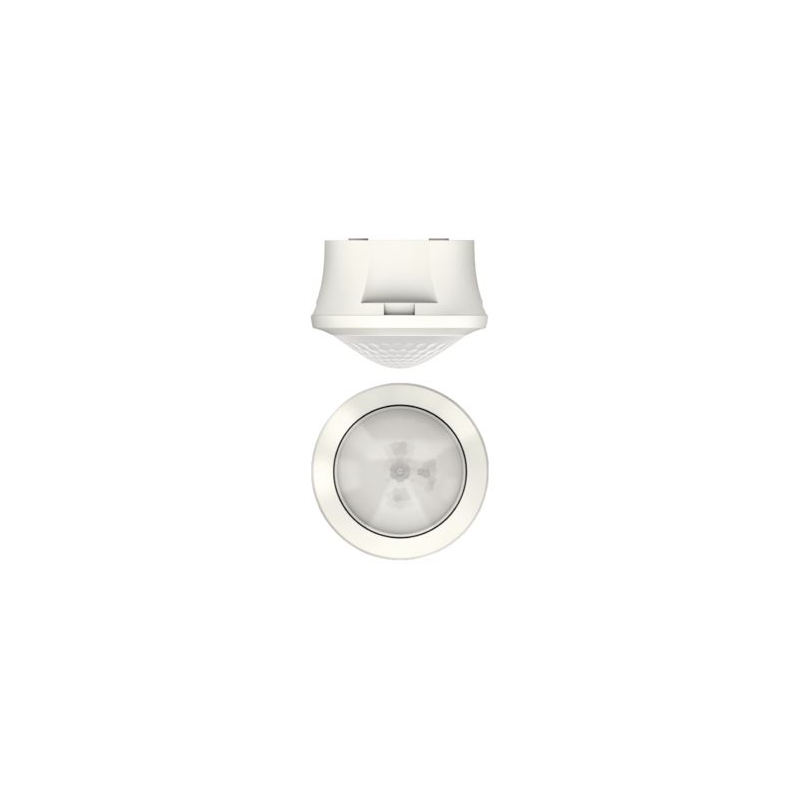

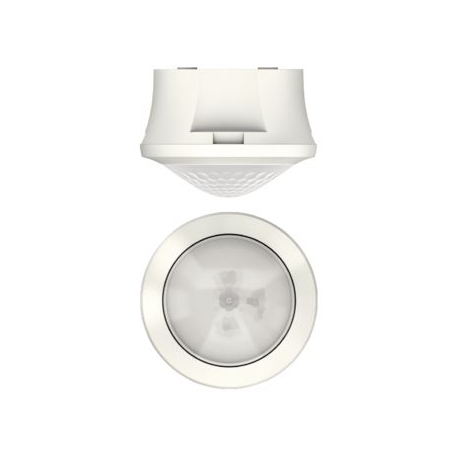

theMova S360-101 AP WH

Passive infra-red motion detector for ceiling installation
? Circular detection area 360°, up to Ø 9 m (64 m2)
? Automatic motion and brightness-dependent control for lighting and HVAC
? Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
? Channel A light: relay, 230 V
? Operation as fully automatic device
? Brightness switching value configurable, teach-in function
? Pulse function for staircase light time switch
? Channel H, presence: relay, floating e.g. for HVAC control
? Time delay configurable
? Detection sensitivity configurable
? Test mode for checking function and detection area
? Ready for immediate use due to factory presetting (Brightness switching value 300 lux, Time delay 10 min.)
? One of these optional remote controls is required for changing the values and attitudes:
? Management remote control SendoPro
? Installation remote control theSenda P
? Optional user remote control: theSenda S
