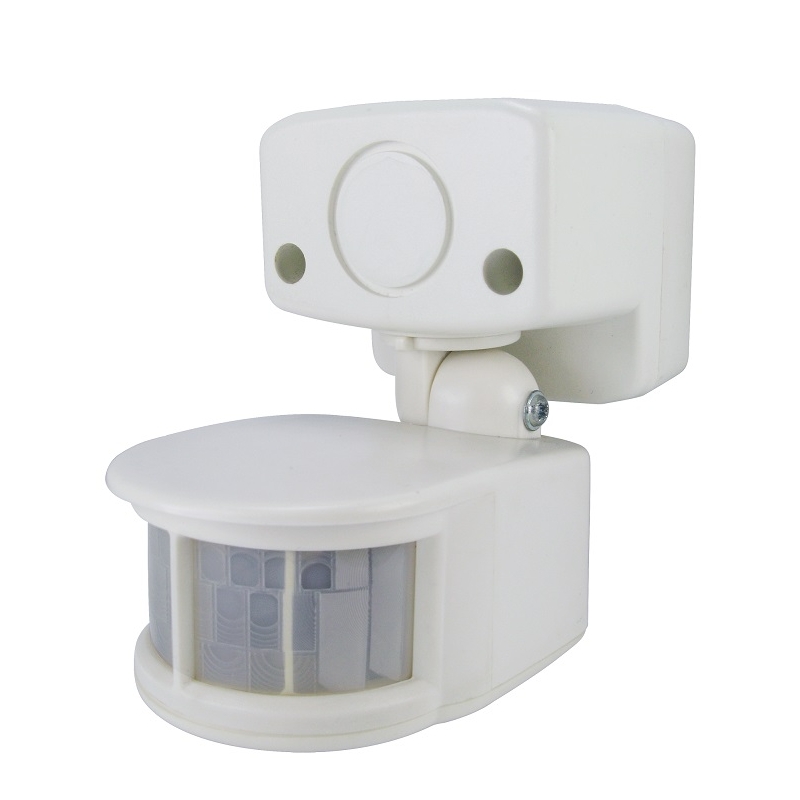

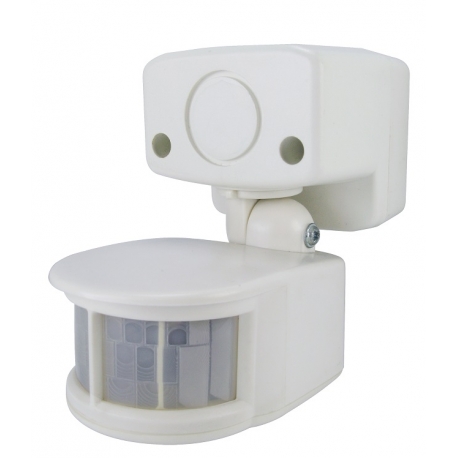

e7.1 MOTION DETECTOR 180º IP44 12-24V AC 11-32V DC

e7.1 MOTION DETECTOR 180º IP44 12-24V AC 11-32V DC

Rated Voltage:12-24V AC 50/60Hz, or 11-32V DC
Load:Voltage free contact
Max. 5A for ?30VDC
Max. 10A for ?250VAC (cosf=1)
Max. 3A for ?250VAC (cosf=0.4)
Detection Angle: 180°
Detection Range:Adjustable up to about 12m frontal and 6m each sideware(H=2.0m)
Auto Off Time Adjustment:Adjustable from approx. 6sec to 12min, Test
Operating Temperature:-20°C to +50°C
Environmental Protection:IP44
