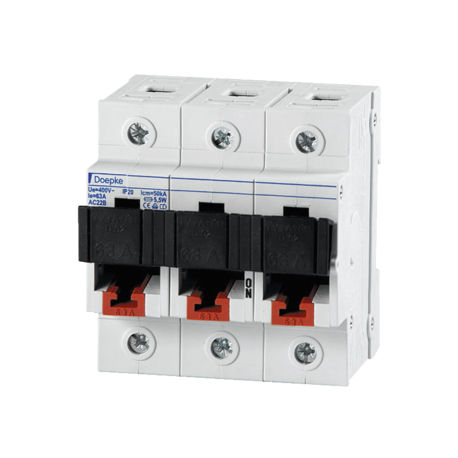

fuse-switch-disconnector Tytan II D0-63-3/S

fuse-switch-disconnector Tytan II D0-63-3/S

Rated voltage/current: 400 V (AC) / 63 A
Contact assignment: 3 NO
large connection terminals up to 35 mm²

Description:
D0 fuse-switch-disconnectors Tytan, three-pole, 63 A, without fuse

Function:
Fuse-switch-disconnectors disconnect and also switch under load to protect the system against overcurrent and short-circuit. Tytan II series devices are main fuse switch-disconnectors for D01 and D02 fuses. Simultaneous isolation of all phases is ensured by the screwcap-less plug-in technology. In contrast to the earlier screwcap technology, in which perfect contact could not be guaranteed, the mechanics of the series prevent the formation of high transitional resistances and therefore minimise thermal dissipation power. Disconnectors in this design are supplied with coloured fitted cartridges according to the specified rated current.

Properties:
low current heat losses, suitable for fuses D01 and D02, finger and back-of-hand proof, large clamping area

Instalation:
quick fastening to mounting rail, any installation position

Applications:
The components are suitable for use in power supplies to residential and purpose-built buildings as well as industrial facilities.
