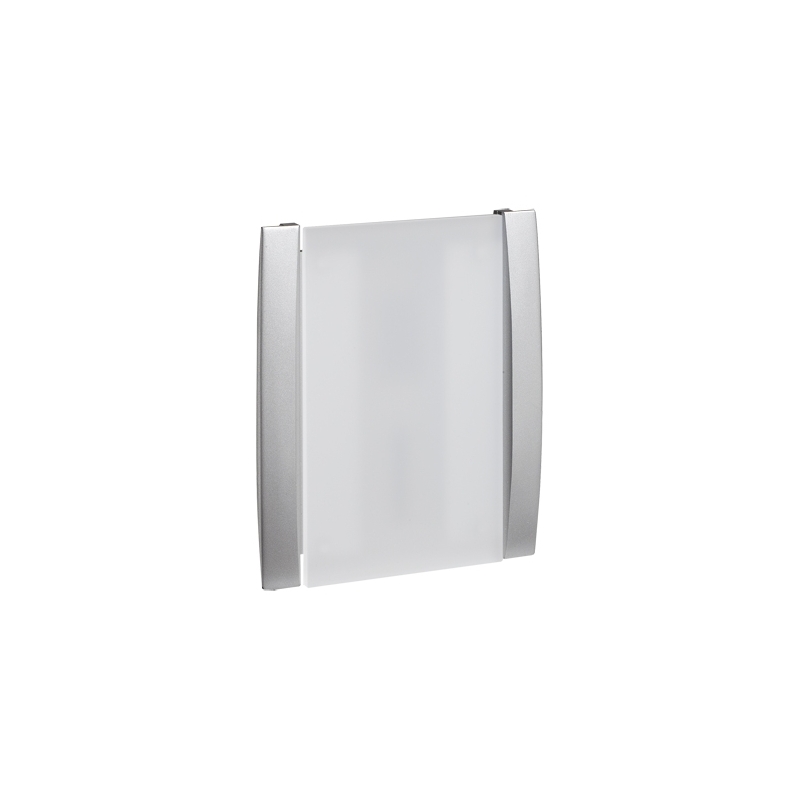

ELETRONIC CHIME CROMA 100

Name: CROMA 100
Description: Electronic chime
• Silver/Grey

The designer chime with a large selection of melodies and
additional ALARM function – a "jewel" in any room!
Functions
• 18 brilliant sounds (2/3 tone, Westminster, pop, special tone
sequence for people with hearing difficulties, classical etc.)
• Switchable from melody to ALARM tone (optimal for use in
combination with movement detectors in a shop, for example,
when a melody should sound during the day and an
ALARM tone at night)
• Volume adjustable up to max. 86 dB(A)
• 2 different paging signals for optimum access control
• SILENCE function (one-button mute function) with LED indicator
• User-friendly easyTIP control unit for all functions (fold-up cover)
Installation
• Operated with 4 x 1.5 V batteries (model LR14/C, alkaline
baby cell, not in scope of delivery) or 8–12 V~/= (250 mA)
• Safe ring tone activation with potential-free contact or with
8–12 V~/=
• Can also be used for mixed installations and renovation
(e.g. existing 8 V power supply from a customer-supplied
bell transformer and triggering with a potential-free contact)
• Optimum pre-assembly (screw distances correspond to
flush-mounting box diameter)
• Parallel circuit to further CROMA chimes or to electromechanical
chimes possible
Technical data
• Voltages/Currents: see above (minimal standby losses
for long battery life — in normal use approx. 3 years incl.
LowBatt display)
• Max. 86 dB(A)
• 191 x 163 x 51 mm
• Temperature range +5°C to +40°C
• VDE-tested
• Frosted semi-transparent 4 mm perspex pane; high-grade silver
or grey-painted ABS plastic
• Protection rating IP 40
