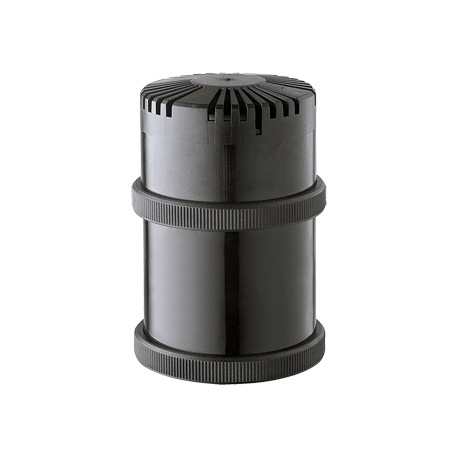

SOUNDER TSG 8785

Name: TSG 8785
Description: Sounder
• 12 V/24 V~/= (3 mA / 6 mA)

An inexpensive sounder for standard applications
Product features
• 6 tone sequences selectable by DIP switch
• Tone sequences: continuous, slow pulsed or rapid pulsed tone
• Reliable magneto-dynamic system for sound generation
Installation
• Incl. bayonet closure with special interlocking teeth to prevent
vibration
• Maximum safety thanks to full contact protection
(even when modules are replaced)
• The top unit of a stacking beacon (so 1 sounder per beacon
is possible)
• Duration of acoustic signals as long as voltage applied
(use an additional relay if required)
Technical data
• For voltages see ordering overview
• Max. 81 dB(A)
• Duty cycle 100%
• Protection rating IP 54, protection class II
• -30°C to +60°C
• Diameter 75 mm x 116 mm
•Weight 0.13 kg
• Adjustable volume
