CONTADOR ENERGIA MID 1TE DIGITAL 0.25-5(45)A IP20

MID ENERGY COUNTER 1TE DIGITAL 0.25-5(45)A IP20

Product description

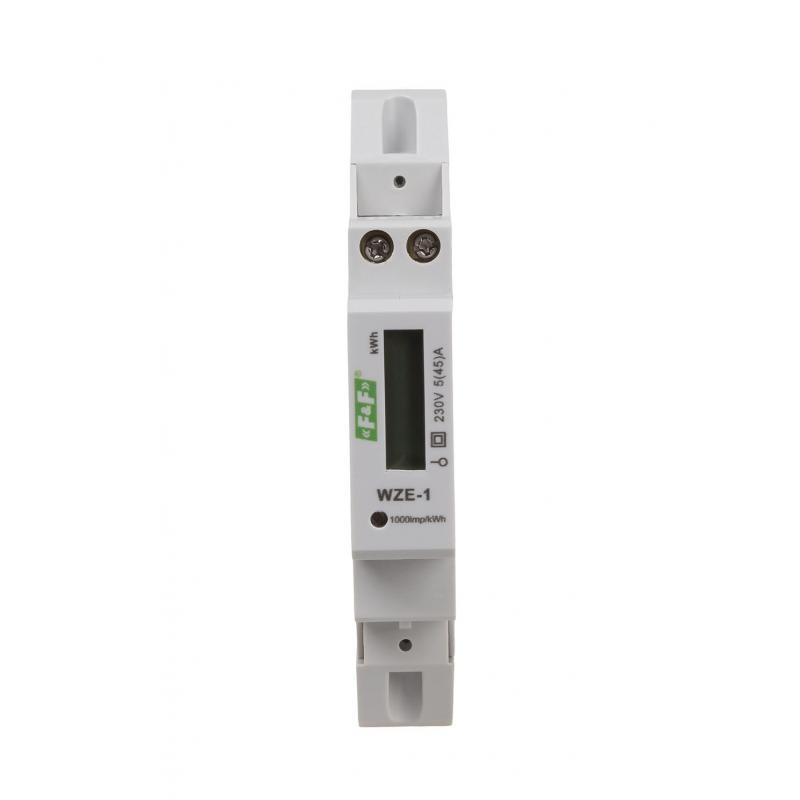

Single phase indicator with LCD display. 45 A.
WZE-1 is a static (electronic) calibrated indicator of single-phase alternating current electrical energy in a direct system.

Purpose
A special electronic circuit under the influence of flowing current and applied voltage generates impulses in a quantity proportional to the electricity consumed. Power consumption is indicated by the LED flashing. The number of pulses is converted into energy consumed, and its value is indicated by a segment LCD display. The figures after the decimal point indicate hundredth parts (.01 kWh = 10 Wh).

Attention!
The device has a pulse output SO + - SO-. This allows you to connect another impulse device reading (SO) pulses generated by the indicator. For correct operation of the meter, no additional device is required.
The indicator has the option of sealing the covers of the input and output terminals preventing the bypass of the indicator.
