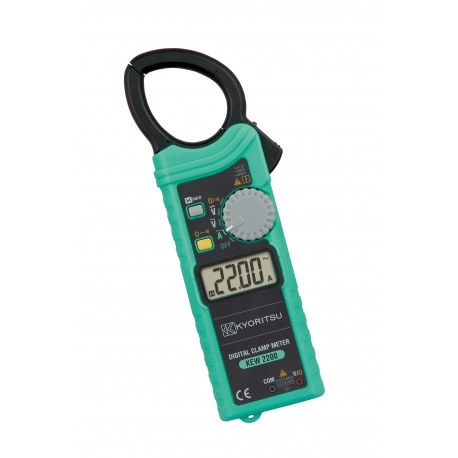

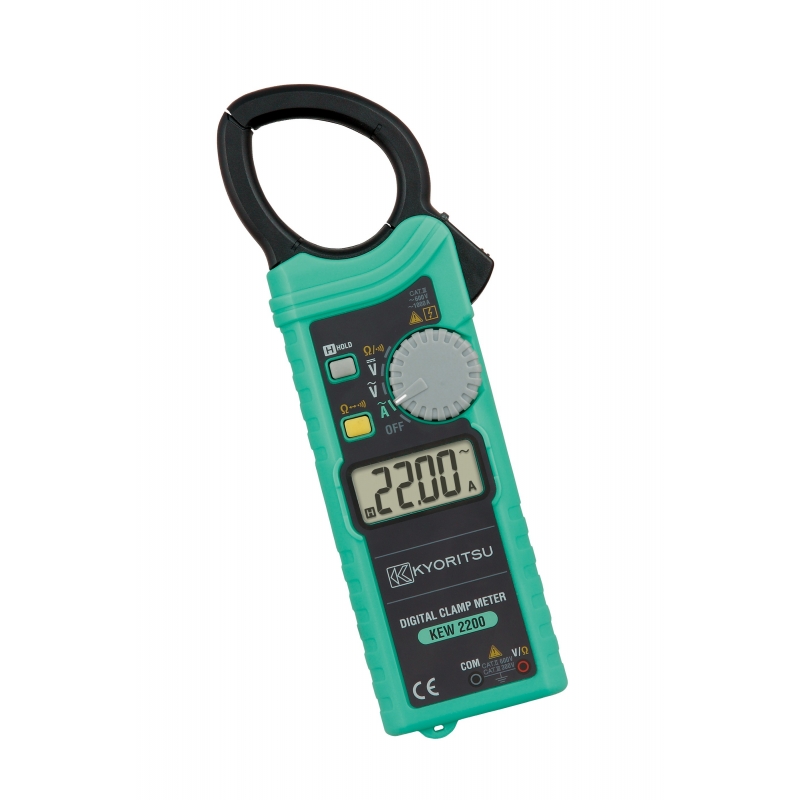

SLIM AC 1000V DIGITAL CLAMP METER 33MM

Name: SLIM AC 1000V DIGITAL CLAMP METER 33MM

Functions

- Ultra Slim and lightweight Handy design
-1000A AC Clamp Meter
-AC40/400/1000A Auto Range
- F33mm Tear Drop Jaw easy to use in tight places
- DMM function ACV, DCV, O, Continuity Buzzer
- Fuseless electronic protection on up O/ to 600V
- IEC61010-1 Safety Standard
CAT III 600V (AC A)
CAT III 300V / CAT II 600V (AC/DC V)
________________________________________

AC A
40.00/400.0/1000A (Auto-ranging)

±1.4%rdg±6dgt (50/60Hz)
±1.6%rdg±6dgt (45 - 65Hz)

AC V
4.000/40.00/400.0/600V (Auto-ranging)

±1.8%rdg±7dgt (45 - 65Hz)
±2.3%rdg±8dgt (65 - 500Hz)

DC V
400.0mV/4.000/40.00/400.0/600V (Auto-ranging)

±1.0%rdg±3dgt (*1)

O
400.0O/4.000/40.00/400.0kO/4.000/40.00MO (Auto-ranging)

±2.0%rdg±4dgt (0 - 400kO)
±4.0%rdg±4dgt (4MO)
±8.0%rdg±4dgt (40MO)

Continuity buzzer buzzer sounds below 50±30O
Conductor size Ø33mm max.
Withstand voltage 5320V AC for 5 seconds (AC A)
3540V AC for 5 seconds (AC/DC V)
Applicable standards IEC 61010-1
CAT III 600V Pollution degree 2 (AC A),
CAT III 300V / CAT II 600V Pollution degree 2 (AC/DC V)

IEC 61010-031, IEC 61010-2-032, IEC 61326 (EMC)
Power source
R03/LR03 (AAA) (1.5V) × 2
* continuous measuring time:
approx. 350 hours (Auto power off: approx. 10 minutes)

Dimensions 190(L) × 68(W) × 20(D)mm
Weight Approx. 120g (including batteries)
Accessories 7107A (Test leads), 9160 (Carrying case), R03 (AAA) × 2,
Instruction Manual
Optional 8008 (Multi-Tran)
