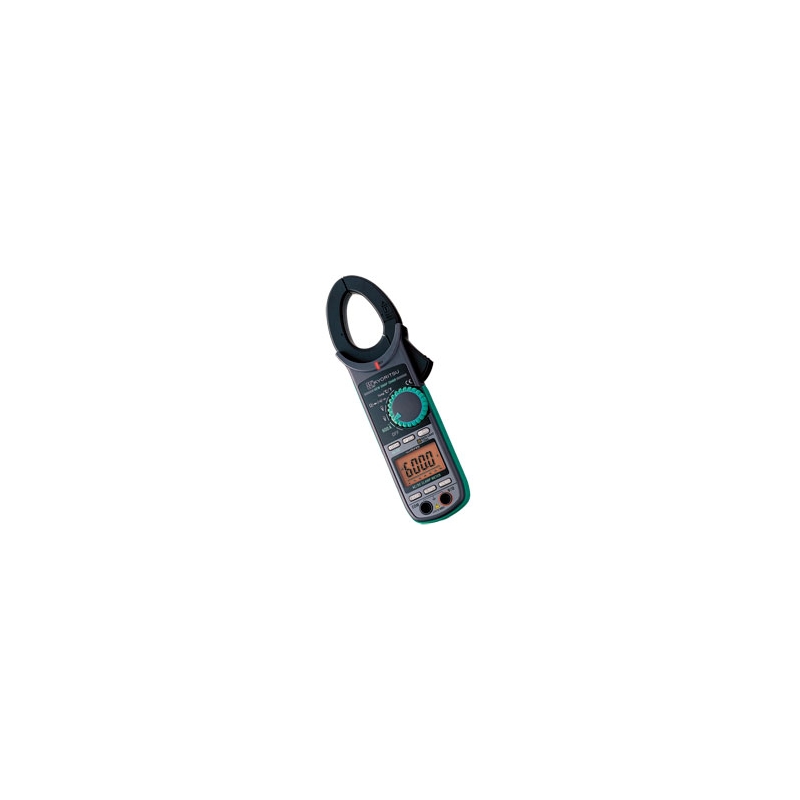

DIGITAL CLAMP METER CA/CC 600A TRMS CAT.IV

Name: DIGITAL CLAMP METER CA/CC 600A TRMS CAT.IV

Functions

-Designed to meet international safety standard IEC 61010-1 CAT IV 600V.
- CAT IV Clamp Meters can measure the Voltage and Current in both very low and high power circuits.
- Thus, very useful for power distribution companies, power utilities and maintenance fields.
- True RMS enables an accurate measurement.
______________________________________


AC A 0 - 600.0A
|±2.0%rdg±5dgt (50/60Hz)
|±3.5%rdg±5dgt (40 - 500Hz)
DC A 0 - 600.0A
|±1.5%rdg±5dgt
AC V 6/60/600V
Auto Ranging
|±1.5%rdg±4dgt (50/60Hz)
|±3.5%rdg±5dgt (40 - 400Hz)
DC V 600m/6/60/600V
Auto Ranging
|±1.0%rdg±3dgt
O 600/6k/60k/600k/6M/60MO (Auto Ranging)
|±1%rdg±5dgt (600 - 6M) / ±5%rdg±8dgt (60M)
Continuity buzzer Buzzer Sounds at 100O
Frequency/DUTY 10/100/1k/10kHz (Auto Ranging) / 0.1 - 99.9%
Temperature -50ºC - +300ºC (With the use of Temperature probe 8216)
Conductor Size Ø33mm
Withstand Voltage 6880V AC for 5 seconds
Safety Standard IEC 61010-1 CAT IV 600V,
IEC 61010-031,
IEC 61010-2-032,
IEC 61326
Power Source R03 (1.5V) (AAA) × 2
Dimensions 243(L) × 77(W) × 36(D)mm
Weight 300g
Accessories 7066A (Test leads)
9094 (Carrying case)
Instruction Manual
Optional 8008 (Multi-Tran)
8216 (Temperature probe)
