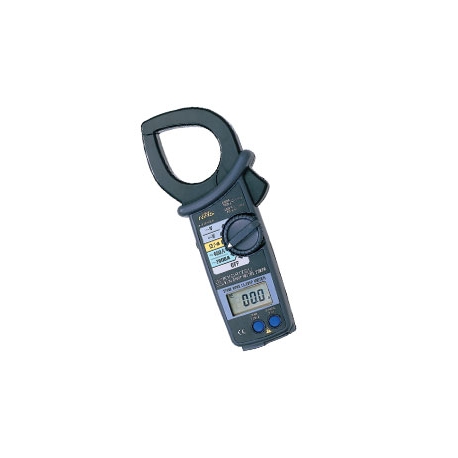

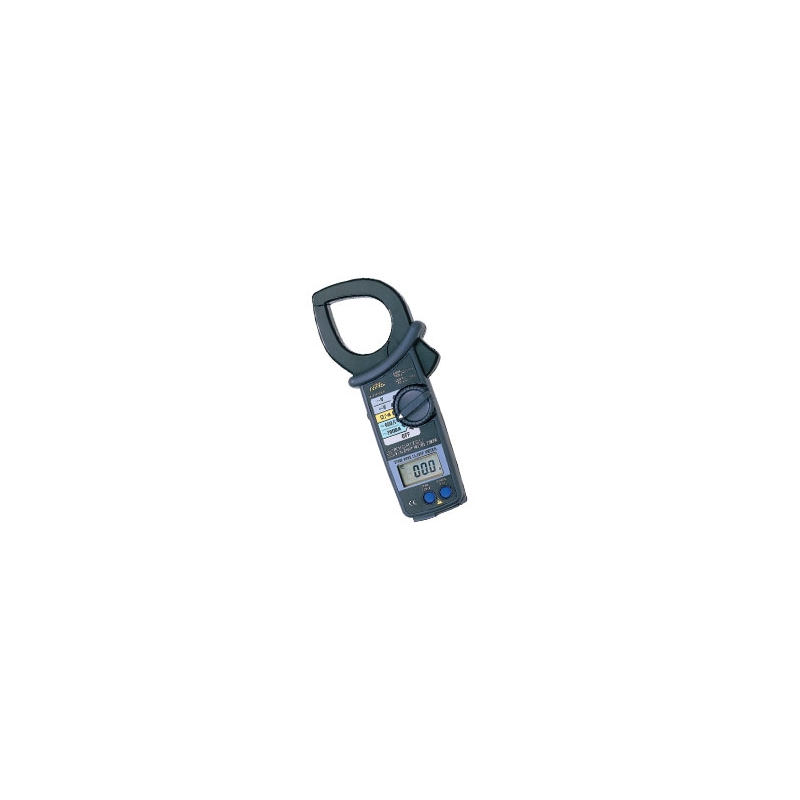

DIGITAL CLAMP METER CA 2000A 55MM (TRMS)

DIGITAL CLAMP METER CA 2000A 55MM (TRMS)

- Can measure large AC current up to 2000A.
- Peak hold function.
- 55mm-dia large tear drop shaped jaws.
____________________________________

AC A 400A (0 - 400A)
|±1%rdg±3dgt [50/60Hz]
|±2%rdg±3dgt [40Hz - 1kHz]
2000A (0 - 1500A)
|±1%rdg±3dgt [50/60Hz]
|±3%rdg±3dgt [40Hz - 1kHz]
2000A (1500 - 2000A)
|±3.0%rdg [50/60Hz]
AC V 40/400/750V
|±1%rdg±2dgt [50/60Hz]
|±1.5%rdg±3dgt [40Hz - 1kHz]
DC V 40/400/1000V ±1%rdg±2dgt
O 400O/4k/40k/400kO|±1.5%rdg±2dgt
Continuity buzzer buzzer sounds below 50±35O
Output
Recorder : DC400mV against AC400A
DC200mV against AC2000A

Conductor Size Ø55mm max.
Safety Standard
IEC 61010-1 CAT III 600V
CAT II 1000V
IEC 61010-2-031
IEC 61010-2-032
Frequency Response 40Hz - 1kHz
Withstand Voltage 5550V AC for 1 minute
Power Source R6 (AA) (1.5V) × 2
Dimensions 247(L) × 105(W) × 49(D)mm
Weight 470g approx.
Accessories 7107A (Test leads)
8201 (Output Plug)
9094 (Carrying Case)
R6 (AA) × 2
Instruction Manual
Optional 8008 (Multi-Tran)
7256 (Output cord)
