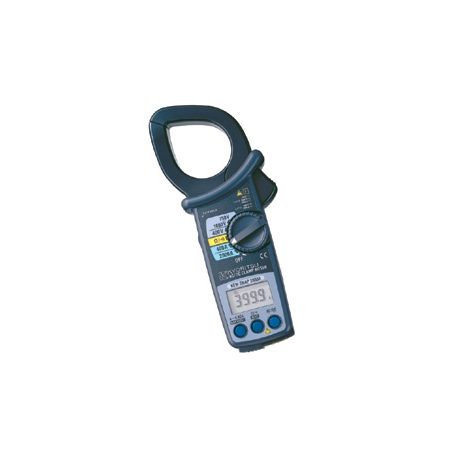

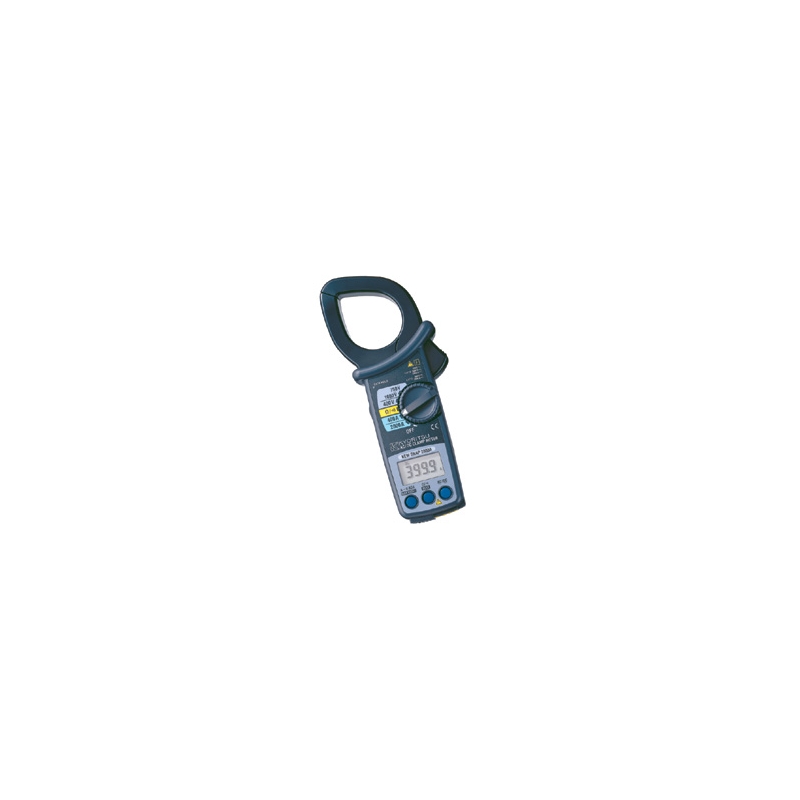

DIGITAL CLAMP METER 2003A 55MM

Name:DIGITAL CLAMP METER 2003A 55MM

Functions

- Equipped to measure both AC and DC current with transformer jaws of large diameter.
-Can measure AC and DC currents up to 2000A.
- Output terminal for connection to recorders.
_____________________________________________________________

AC A 400A/2000A (0 - 1000A)
|±1.5%rdg±2dgt [50/60Hz]
|±3%rdg±4dgt [40 - 500Hz]
|±5%rdg±4dgt [500Hz - 1kHz]
2000A (1001 - 2000A)
|±3%rdg±2dgt [50/60Hz]
AC V 400/750V
|±1.5%rdg±2dgt [50/60Hz]
|±1.5%rdg±4dgt [40Hz - 1kHz]
DC A 400/2000A ±1.5%rdg±2dgt
DC V 400/1000V ±1%rdg±2dgt
O 400/4000O|±1.5%rdg±2dgt
Continuity buzzer buzzer sounds below 50±35O
Output
Recorder : DC400mV against AC/DC400A
DC200mV against AC/DC2000A

Conductor Size Ø55mm max.
Safety Standard IEC 61010-1 CAT IV 600V CAT III 1000V
IEC 61010-031
IEC 61010-2-032
Frequency Response 40Hz - 1kHz
Withstand Voltage 6880V AC for 5 seconds
Power Source R6 (AA) (1.5V) × 2
Dimensions 250(L) × 105(W) × 49(D)mm
Weight 530g approx.
Accessories 7107A (Test leads)
8201 (Output Plug)
9094 (Carrying Case)
R6 (AA) × 2
Instruction Manual
Optional 8008 (Multi-Tran) (AC only)
7256 (Output cord)
