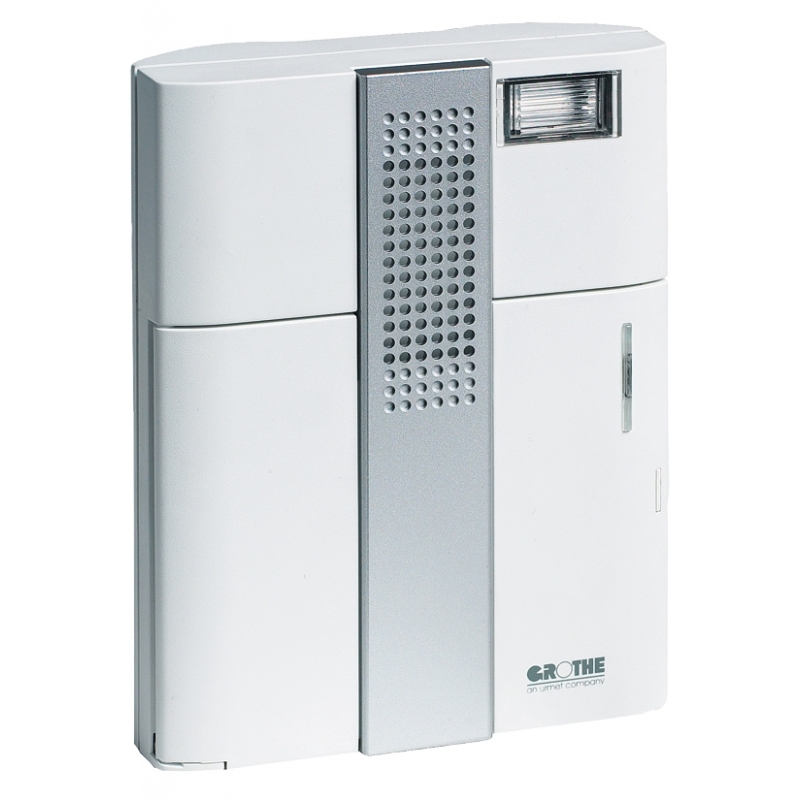

CHIME MISTRAL 300E

Radio chime receiver

Technical information

6 melodies/flashing light Distance booster . Range 200 m, transmission frequency: 868.35 MHz Walls, doors, metal parts etc. may significantly reduce the range! Where required, use distance booster through the installation of further radio sets. Volume max. 86 dB(A), infinitely adjustable Receiver: 4 x 1.5V (model LR 14/C, alkaline baby cell, not in scope of delivery) or 8 - 12 V =/~ (socket + terminal: reverse polarity protected) Transmitter: 1 x 12 V (model A23, alkaline round cell, included in scope of delivery, replacemant batt. E. g. VARTA V23GA or Duracell MN21 in specialised dealer) or terminal for 8 - 12 V= Dimensions: receiver: 150 x 115 x 38 mm, transmitter: 35 x 96 x 16 mm
Range 200 m* 8 - 12 V=/~ / Batt. 4 x 1.5 V White
