CAIXA Abox E30-E90 100x100x70mm IK08 IP65

JUNCTION BOX Abox E30-E90 100x100x70 IK08 IP65

WKE 2 G 3x4²

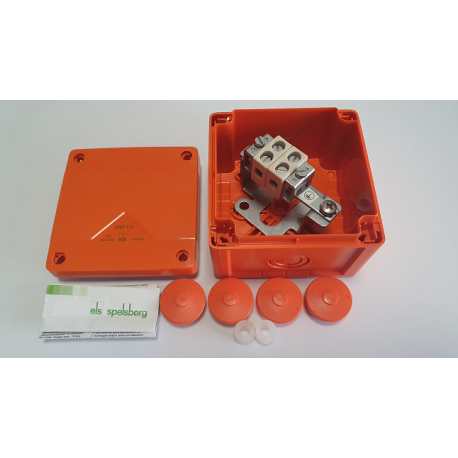

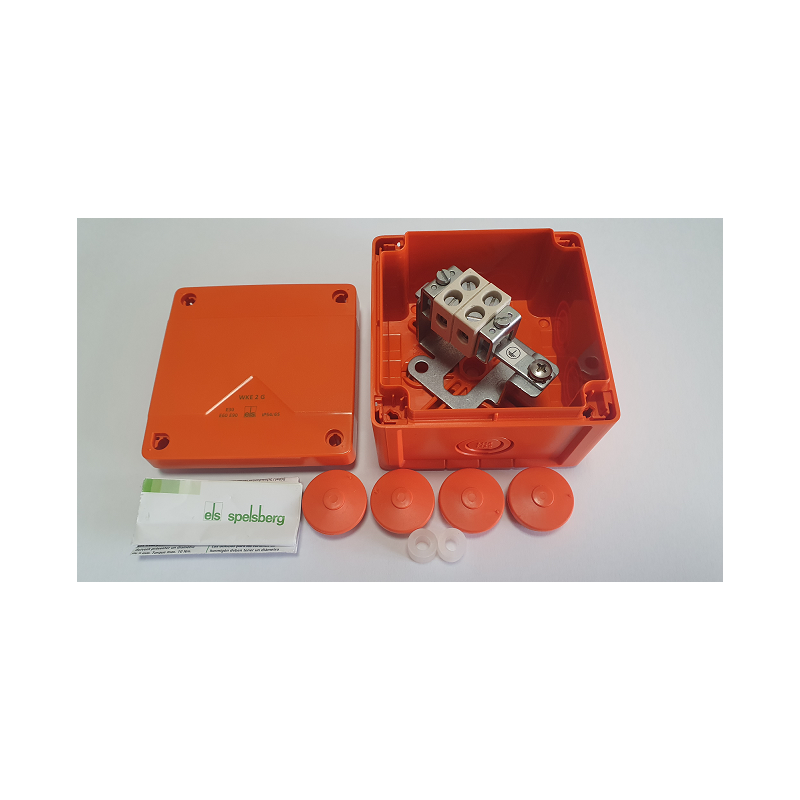

Cable junction box

Productnumber: 86451202

Dimensions: 100 x 100 x 70 mm

Cable junction box, with protection class IP54/IP65, Ui=450V AC, Push-out membranes, M16/M25, (1Rear, 7 Side), Internal fastening points, with E30 - E90 electrical functional integrity according to DIN4102 Part 12. Halogen-free enclosure made of special thermoplastic, terminals made of hightemperature-resistant special ceramic orange, onnection box, 3-pole, 1 - 6 mm², junction box 3-pole 1 - 4 mm², number of clampable wires per pin: 10 x 1² / 8 x 1.5² / 6 x 2.5² / 4 x 4² / 2 x 6²
