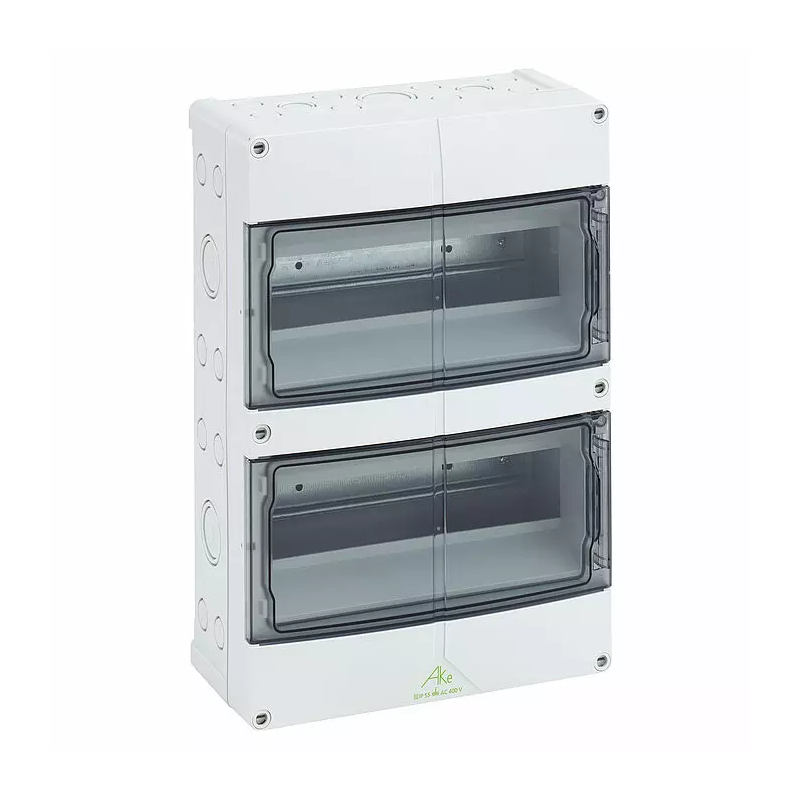

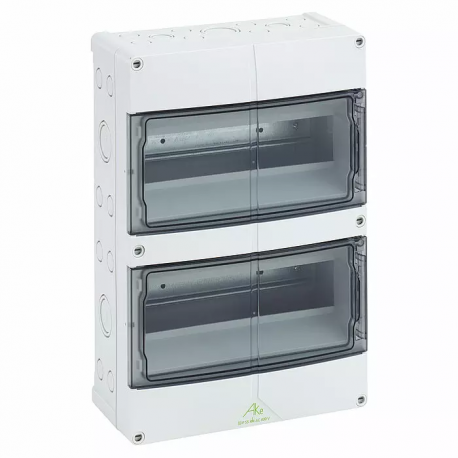

QUADROsaliente AKe 24 24TE 250x370x122mm IP55 IK07

Distribution board AKe 24 Compact 24TE 250x370x122mm IP55 IK07

Small-scale distributors, with protection class IP55, 2 Rows, 12 available
modules, Rated operational voltage: 400V AC, Rated insulation voltage:
690V AC, 690V DC, metric knockouts on top and bottom for universal
cable insertions with cable glands, double membrane seals and/or
stepped nipple, with PE/N terminal rail, each with 2 terminal points 16
mm² and 14 terminal points 6 mm²

Characteristics:
Type of protection IP55, 24 Modular units, Impact strength IK07, Protection class II, Rated voltage 400V AC, Halogen free

Accessories supplied:
Stepped nipples: 10x M20, 1x M32, sealing plugs, cover and labelling strips
