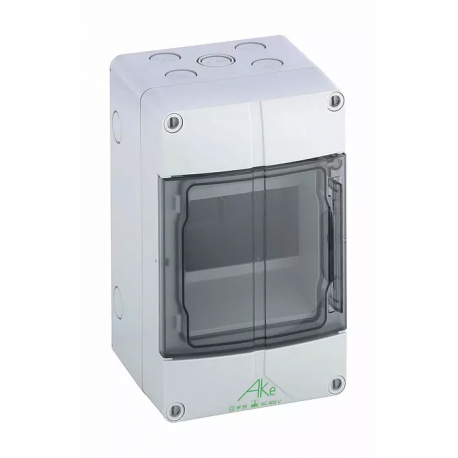

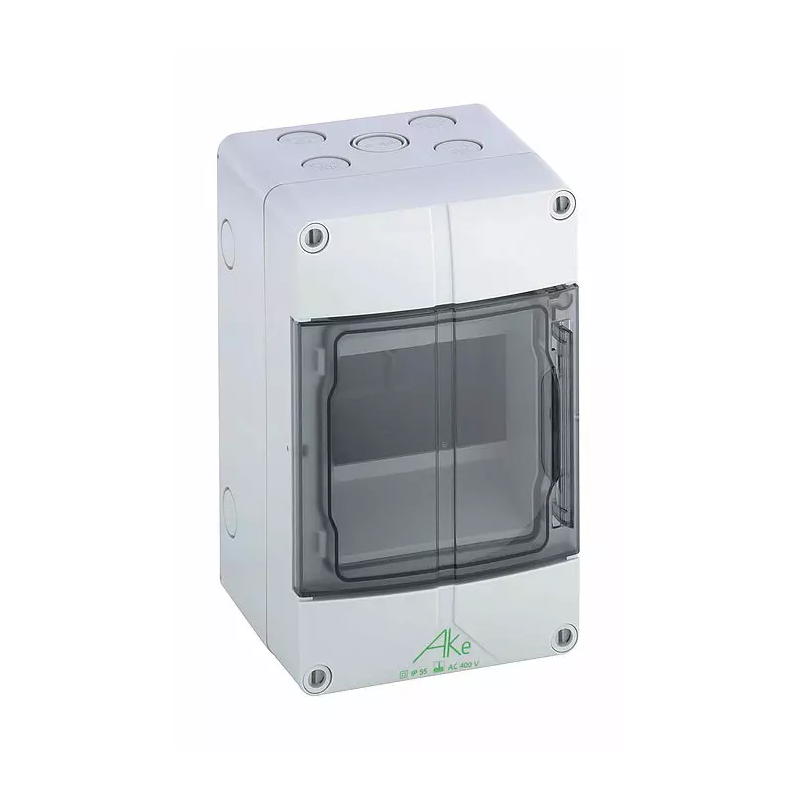

QUADROsalient AKe 05-L 5TE 125x200x122mm IP55 IK07

Distribution board AKe 05-L 5TE 125x200x122mm IP55 IK07

Small-scale distributors, with protection class IP55, 1 Row, 5 available modules, Rated operational voltage: 400V AC, Rated insulation voltage: 690V AC, 690V DC, metric knockouts on top and bottom for universal cable insertions with cable glands, double membrane seals and/or stepped nipple

without PE/N terminal rail

Accessories supplied:
Stepped nipples: 4x M20, 1x M25, sealing plugs, cover and labelling strips
