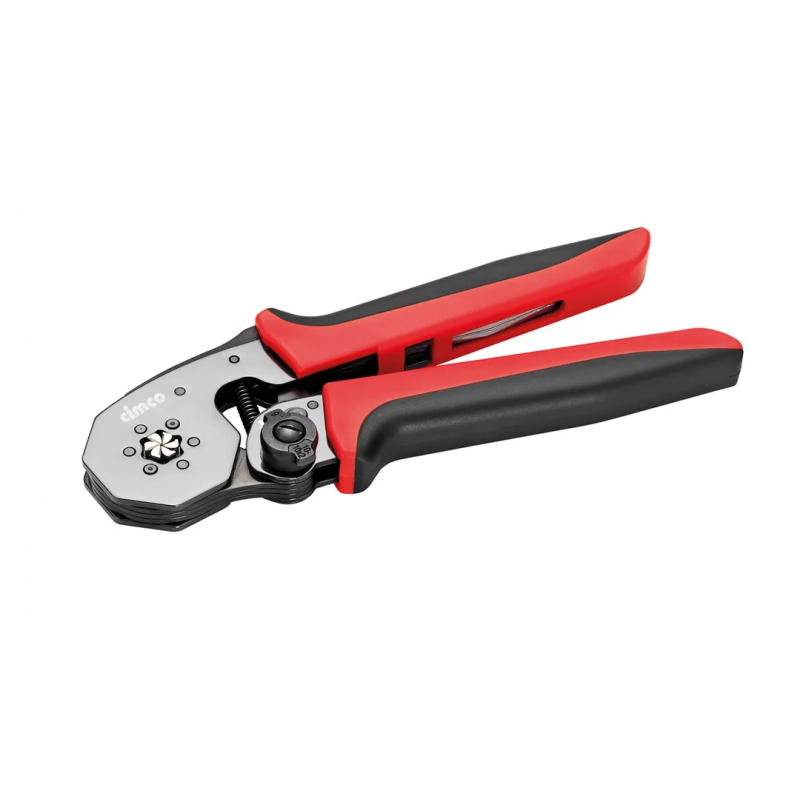

crimping plier FLEXI-CRIMP 6 (0.08...2x10 mm2)

crimping plier FLEXI-CRIMP 6 (0.08...2x10 mm2)

With the new Flexi-Crimp 6 crimping pliers for wire end ferrules, CIMCO is opening the door to a new dimension of crimping tools. The hexagonal crimping which has now become established in wire end ferrule technology creates optimal crimping shapes that allow the user to work in small spaces without any extra effort. For the first time, the new Flexi-Crimp 6 now processes the cross section range from 0.08 to 16 mm² (for individual wires), as well as 2 x 0.5 to 2 x 10 mm² (for twin wire end ferrules) with just one tool. The cross-section range is set before crimping and being able to feed the wire end ferrules in from the side makes the work easier.

•Cross section range from 0.08 to 2 x 10 mm²
(for crimping wire end ferrules according to DIN 46228 part 1 + 4)
• Feed in ferrules from the side
• Hexagonal crimping for tight connection dimensions
• Self-adjusting adaptation to the required wire end ferrule size
• Consistently high crimp quality thanks to ratchet lock
(can be unlocked)
•Weight: 380 g
