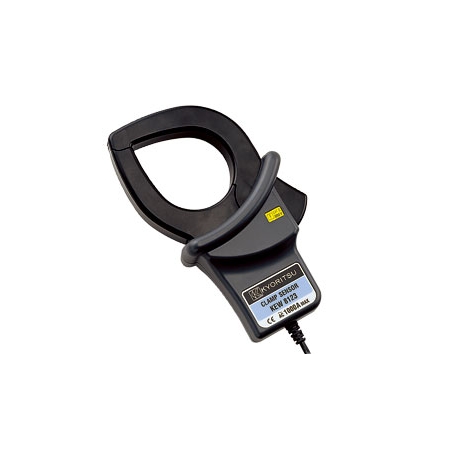

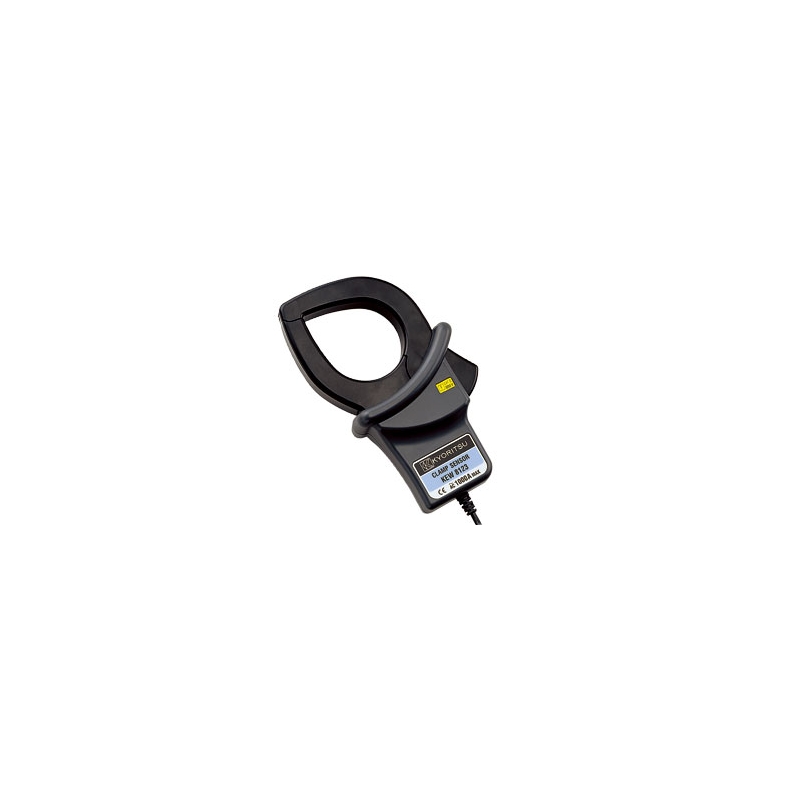

CLAMP SENSOR 8123

Name: CLAMP SENSOR 8123

Applicable model 5010/5020

________________________

Conductor size F55
Rated current AC 1000A
Output voltage AC 500mV/1000A (AC 0.5mV/A)
Accuracy |±2.0%rdg±0.3mV (50/60Hz)
|±3.0%rdg±0.5mV (40Hz - 1kHz)
Withstand voltage AC 5350V for 5 seconds
Cable length Approx. 2m
Output connector MINI DIN 6pin
Operating temperature ranges 0 - 40ºC, less than 85% RH (without condensation)
Output impedance Approx. 1.5O
Applicable standards IEC 61010-1:2001,
IEC 61010-2-032:2002,
CAT III 600V pollution degree 2
Dimensions 170(L) x 105(W) x 48(D) mm
Weight Approx.360g
Accessories 9094 (Portable case), Instruction manual, Cable marker
Option 7146 (Banana F4 adjuster plug)
7185 (Extension Cable)
