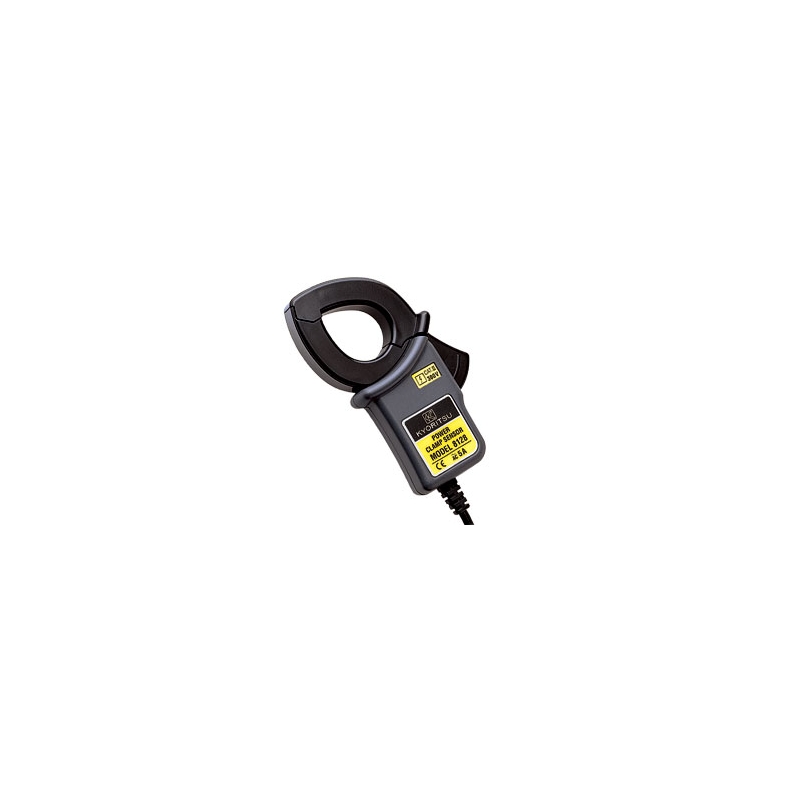

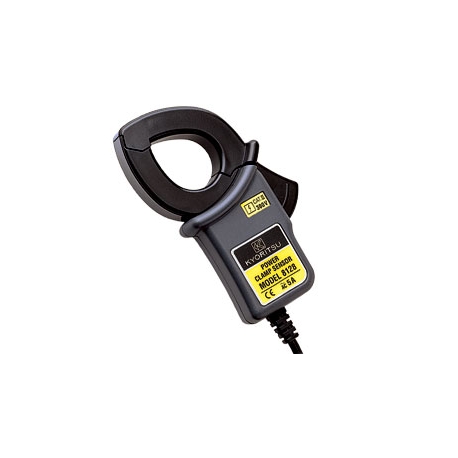

CLAMP SENSOR 5A 24MM

Name: CLAMP SENSOR 8128


Applicable model
5010/5020, 6300, 6305, 6310, 6315
______________________________

Conductor size F24
Rated current AC 5A (Max.50A)
Output voltage AC 50mV/5A [Max.500mV/50A] (AC 10mV/A)
Accuracy |±0.5%rdg±0.1mV (50/60Hz)
|±1.0%rdg±0.2mV (40Hz - 1kHz)
Phase Shift within ±2.0º (45 - 65Hz)
Withstand voltage AC 3540V for 5 seconds
Cable length Approx. 3m
Output connector MINI DIN 6pin
Operating temperature ranges 0 - 50ºC, less than 85% RH (without condensation)
Output impedance Approx. 20O
Applicable standards IEC 61010-1:2001,
IEC 61010-2-032:2002 CAT III 300V pollution degree 2
Dimensions 100(L) x 60(W) x 26(D) mm
Weight Approx. 160g
Accessories 9095 (Portable case), Instruction manual, Cable marker
Option 7146 (Banana F4 adjuster plug)
7185 (Extension Cable)
