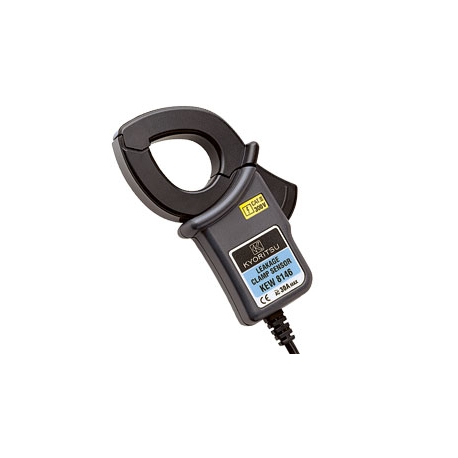

LEAKAGE CURRENT CLAMP SENSOR 24MM

Name: LEAKAGE CURRENT CLAMP SENSOR 8146


Applicable model
5010/5020, 6310, 6315

_________________________________
* Cannot be used for power measurement.
_________________________________


Conductor size F24
Rated current AC 30A
Output voltage AC 1500mV/30A (AC 50mV/A)
Accuracy 0 - 15A
|±1.0%rdg±0.1mV (50/60Hz)
|±2.0%rdg±0.2mV (40Hz - 1kHz)

15 - 30A
|±5.0%rdg (50/60Hz)
|±10.0%rdg (45Hz - 1kHz)
Withstand voltage AC 3540V for 5 seconds
Cable length Approx. 2m
Output connector MINI DIN 6pin
Operating temperature ranges 0 - 50ºC, less than 85% RH (without condensation)
Output impedance Approx. 90O
Applicable standards IEC 61010-1:2001,
IEC 61010-2-032:2002,
CAT III 300V pollution degree 2
Dimensions 100(L) x 60(W) x 26(D) mm
Weight Approx.150g
Accessories 9095 (Portable case), Instruction manual, Cable marker
Option 7146 (Banana F4 adjuster plug)
7185 (Extension Cable)
